Explosion Proof & Intrinsically Safe Proximity/Limit Switches SPDT/SPCO
Series Overview - 316 Stainless Steel Prox Switch with Multi Voltage Capability
The ES-8 Series Proximity Switch is highly adaptable and can be used in a multitude of applications where a reliable signal is required.
Volt free SPCO/SPDT (Form C) contacts as standard with the ability to use as Normally Open or Normally Closed devices. The ES-8 series offers versatility and multi-voltage flexibility by being able to switch either DC or AC and up to 240V.

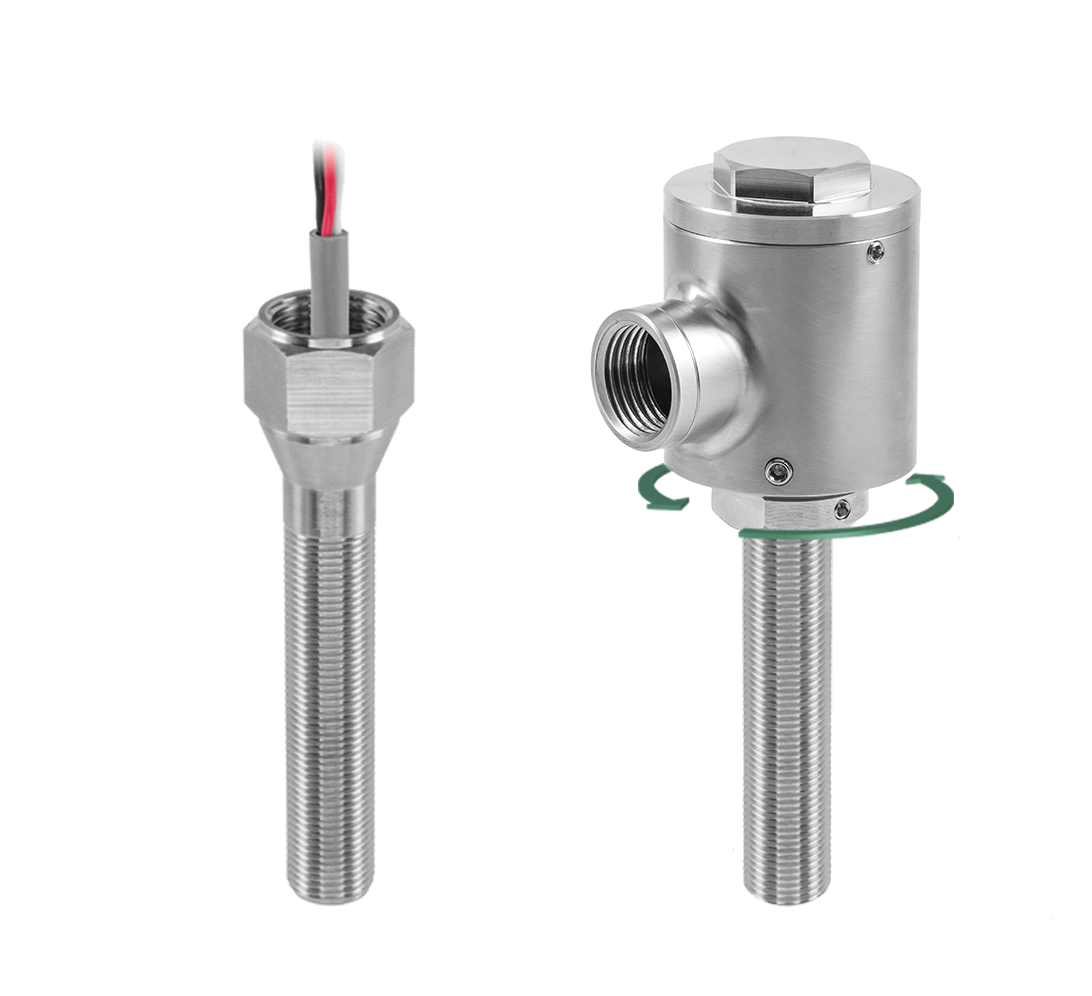

The mounting thread is M18x1.0 and is available either hardwired or with our wireable WLR integrated junction box/connection head. Euroswitch wireable proximity switches alleviate add on components and allow installation where space is at a premium.
The standard electrical conduit connection is M20x1.5 with a 1/2"-14 NPT imperial option also available.
The presence of an external magnetic actuator is required for operation. Designed for end sensing. Sensing ranges are dependent on the magnetic actuators used.
The ES-8 Series is covered by the following hazardous area certifications.
| Explosion Proof: | IECEx & ATEX Ex d/db/tb (Zone 1 & Zone 21) ¦ UL/CSA (Class I & II, Div1 & Div2) |
| Intrinsically Safe: | IECEx & ATEX Ex ia (Zone 0 & Zone 20) ¦ UL/CSA IS (Zone 0) |
| Other Regional Approvals Include: | EAC/TRCU, INMETRO, KCs, CCOE/PESO, ECAS ex, NEPSI/CQST |
The ES-8 series proximity switches meet the requirements of IEC 61508:2010 Routes 1H & 1S with Systematic Capability (SC3) as an element/subsystem, and are suitable for use in safety related systems performing safety functions up to and including SIL 2 with HFT=0 (1oo1) and SIL 3 with HFT =1 (1oo2).
- Forma corpo
- Cilindrico
- Materiale corpo
- Acciaio inossidabile 316L
- Materiale contatto
- Rodio (tungsteno opzionale)
- Filettatura di montaggio
- M18x1.0 (68.60mm / 2.70" long) c/w 2 x locknuts
- Corrente max
- 2.5A
- Ingresso condotto
- M20 x 1,5
- Classe di temperatura (T Rating)
- T4 / T6
- Intervallo di sensibilità con magnete
- Fino al massimo nella tabella magnete
- Rating pressione faccia di rilevamento
- 2000 psi / 138 bar
- Protezione ambientale
- IP 66, 67 & 68 (24hrs at 30m)/ NEMA 4, 4X, 6 & 6P
- Classificazione di sicurezza
- SIL 2 / SC3
- Actuation
- Magnetically
Tutti i nostri prodotti sono disponibili anche per una posizione normale/applicazione industriale generale.
Seleziona la tua certificazione e il tuo concept di protezione per il tuo requisito specifico dal Builder del numero di parte di seguito
