Series Overview - SPDT/SPCO and DPDT/DPCO Volt Free Models
The FL-A Series Flow Switch is highly versatile and can be used in a multitude of fluid applications where a reliable flow indication is required. Typical applications include providing an alarm signal when emergency safety showers or eyewash stations are operated, protecting pumps, engines, motors and burners from low flow and allows automatic starting of ancillary pumps and heaters based on detected flow rate.
The FL-A Series flow switch is a robust paddle type design utilising stainless steel 316L wetted parts guaranteeing long life. Designed to be mounted in horizontal pipework the switch is available either pre-installed in an equal tee ready for direct fitment into customer pipework, or supplied without a tee when it is desirable to screw the switch unit directly into an existing process connection. Models are available with process connections from 1/2" to 2".
Utilising proven dry contact switch technology allows them to be used across a wide temperature range whilst providing output signals suitable for PLC monitoring and/or driving beacons or sounders where the 24A in-rush capability ensures that the switch can safely handle any start-up current surge. Volt free SPCO/SPDT (Form C) contacts are offered as standard with an option of DPDT (2x Form C). Operating temperature is from -60°C to +120°C.

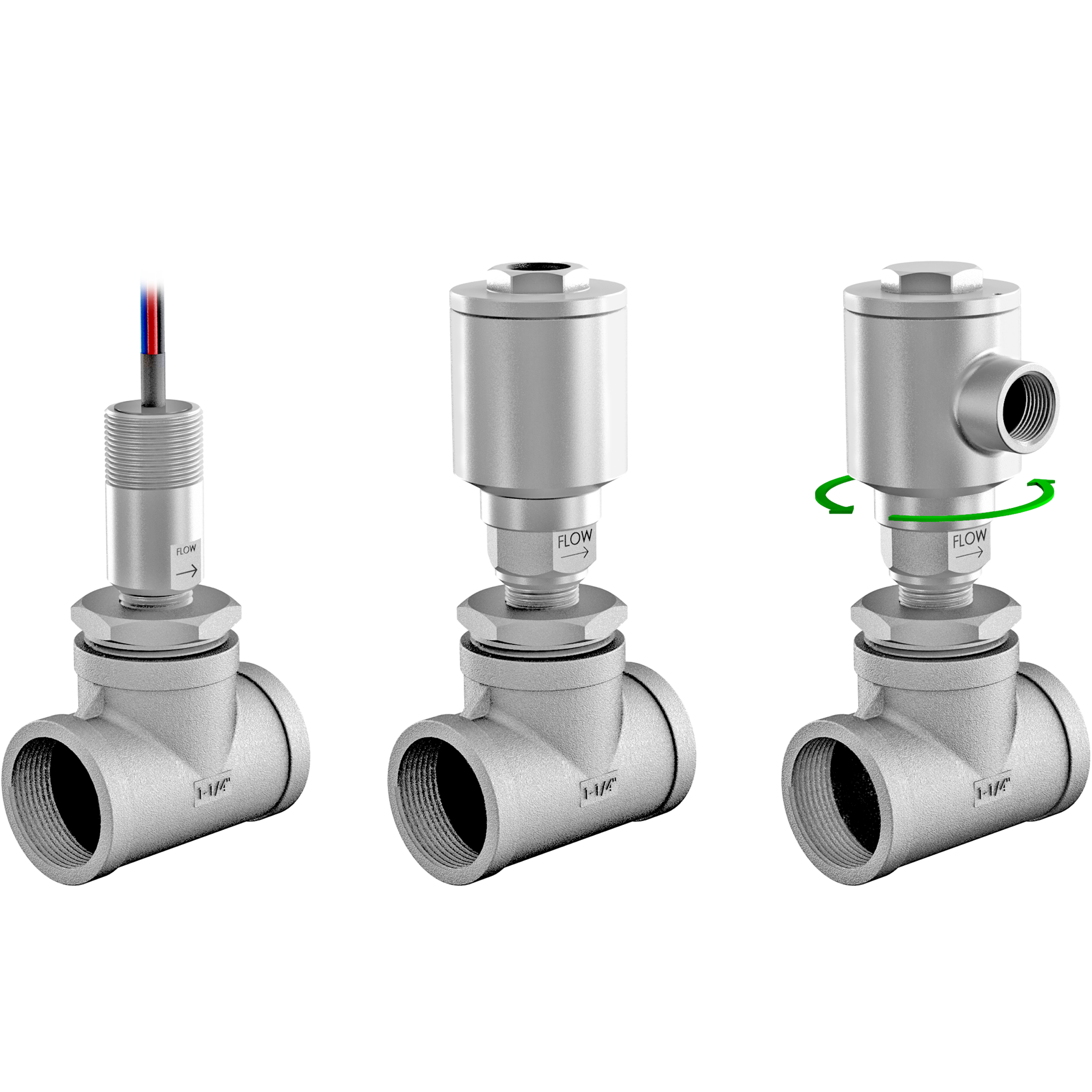

The FL-A Series is available either hardwired or with one of three wireable options (W, WL, WLR) which utilises our pioneering integrated junction box/connection head design. Euroswitch wireable flow switches alleviate add on components such as adaptors and junction boxes, and allow installation where space is at a premium.
Enabling full compliance with “Emergency Eyewash and Shower Equipment” standard ANSI / ISEA Z358.1-2014, our FL-A Series provide the ability to monitor the minimum flow requirement for eye and face wash stations of 3.0 gallons (11.4 litres) of water per minute in pipe sizes from 1/2” to 1-1/4”. The unique ability to detect this low flow rate in 1-1/4” pipe size allows manufacturers of eye/face wash and shower combination stations to use a common pipe size, throughout the station, allowing a single Euroswitch FL series unit to be installed without having to reduce and adapt pipe sizes thereby reducing costs and complexity.
FL Series are fully compatible with our battery powered Euroswitch Wireless Technology to enable transmission of condition monitoring and alarm signals in mesh networks and via IoT protocols such as SigFox in all applications including hazardous and explosion-proof environments.
The FL-A Series is covered by the following hazardous area certifications.
|Explosion Proof:||IECEx & ATEX Ex d db tb (Zone 1 & 2 and Zone 21 & 22)|
UL/CSA Class I, Class II and Class III, Division 1 & Division 2
(Cl1 Div1 ; Cl2 Div1 ; Cl1 Div 2 ; Cl2 Div2)
|Intrinsically Safe:||IECEx & ATEX Ex ia (Zone 0 & Zone 20) ¦ UL/CSA IS (Zone 0)|
|Other Regional Approvals Include:||EAC TRCU, INMETRO, KCs (KOSHA), PESO CCOE , ECAS ex, NEPSI CQST|
- Body Shape
- Body Material
- 316L Stainless Steel
- Wetted Part Material
- 316L Stainless Steel
- 1/2" to 2" BSPT/NPT
- M20x1.5 | 1/2" NPT | 3/4" NPT
- Contact Arrangement
- DPCO / DPDT (2x Form C), SPCO / SPDT (Form C)
- Gas Group
- IIC | Groups A B C D
- Dust Group
- IIIC | Groups E F G
- Temperature Class (T Rating)
- T3 / T4 / T6
- Environmental Protection
- IP 66, 67 & 68 (24hrs at 30m)/ NEMA 4, 4X, 6 & 6P
- Maximum Working Pressure
- 138bar / 2000psi
All of our products are also available as Ordinary Location / General Industrial.
Please select your certification and protection concept for your specific requirement from the Part Number builder below
