Proximity Switch - Magnetic
Explosion Proof & Intrinsically Safe Proximity/Limit Switches SPDT/SPCO or DPDT/DPCO
Certifications / Approvals
Series Overview - 316 Stainless Steel Prox Switch with Multi Voltage Capability
The ES-6 Series Proximity Switch is highly adaptable and can be used in a multitude of applications where a reliable signal is required. Its unique construction allows it to be used in some of the most extreme environments from -60°C (-76F) to 175°C (347°F).
A multitude of contact forms are available including changeover types SPCO/SPDT, DPCO/DPDT and 2-wire types Normally Open (NO) or Normally Closed (NC). A version incorporating line fault detection/monitoring is available with NAMUR output. Variants with Gold flashed contacts are also available for switching low currents. The ES-6 series offers versatility and multi-voltage flexibility by being able to switch either DC or AC at up to 240V.

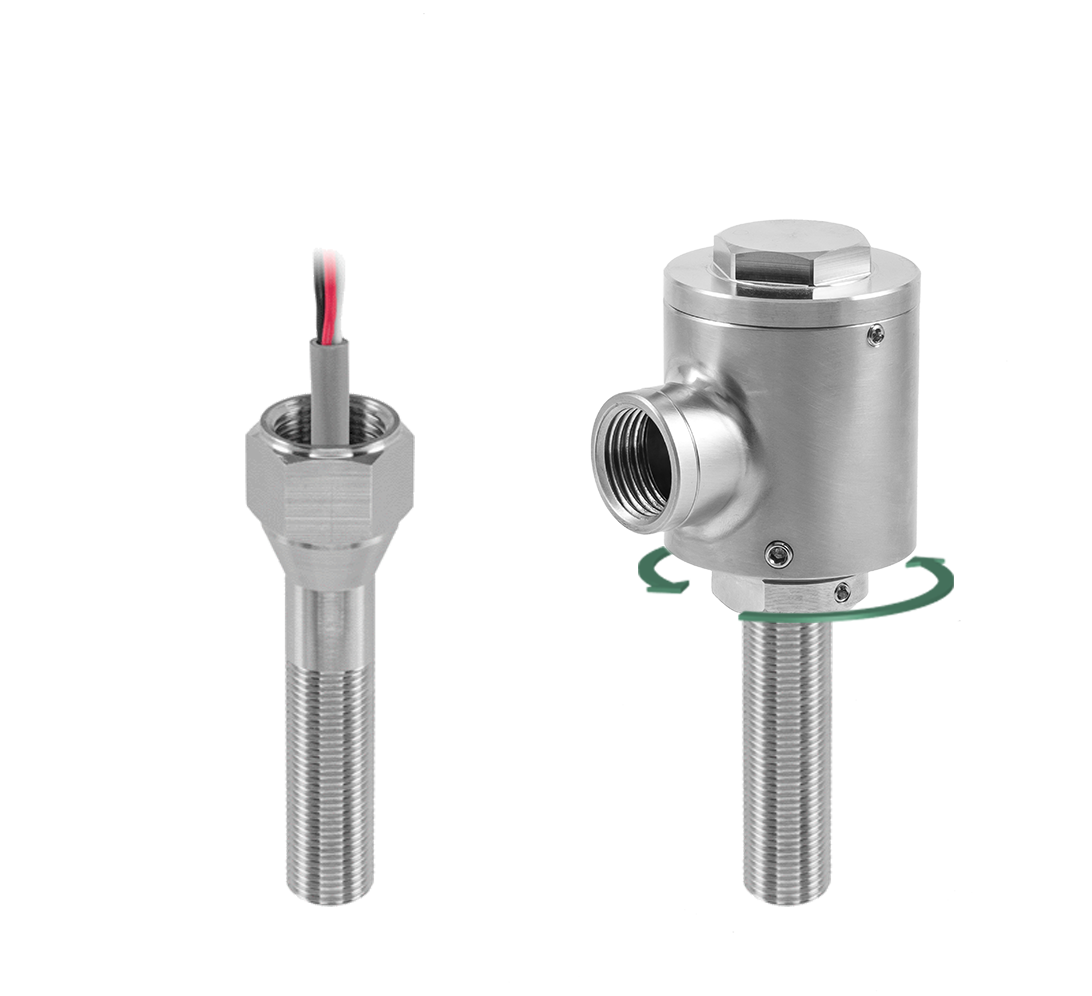

The mounting thread is M18x1.0 and is available either hardwired or with one of three wireable options (W, WL, WLR) which utilise our pioneering integrated junction box/connection head design. Euroswitch wireable proximity switches alleviate add on components and allow installation where space is at a premium.
The standard electrical conduit connection is M20x1.5 with an 1/2"-14NPT imperial option also available.
The presence of an external magnetic actuator is required for operation. Designed for end sensing. Sensing ranges are dependent on the magnetic actuators used.
The ES-6 Series is covered by the following hazardous area certifications.
Explosion Proof: | IECEx & ATEX Ex d/db/tb (Zone 1 & Zone 21) ¦ UL/CSA (Class I & II, Div1 & Div2) |
Intrinsically Safe: | IECEx & ATEX Ex ia (Zone 0 & Zone 20) ¦ UL/CSA IS (Zone 0) |
Other Regional Approvals Include: | EAC/TRCU, INMETRO, KCs, CCOE/PESO, ECAS ex, NEPSI/CQST |
The ES-6 series proximity switches meet the requirements of IEC 61508:2010 Routes 1H & 1S with Systematic Capability (SC3) as an element/subsystem, and are suitable for use in safety related systems performing safety functions up to and including SIL 2 with HFT=0 (1oo1) and SIL 3 with HFT =1 (1oo2).
- Body Shape
- Cylindrical
- Body Material
- 316L Stainless Steel
- Contact Arrangement
- DPCO / DPDT (2x Form C), Latching SPCO / SPDT, SPCO / SPDT (Form C)
- Contact Material
- Rhodium (Tungsten optional)
- Mounting Thread
- M18x1.0 (47.75mm / 1.88" long) c/w 2 x locknuts
- Max Current
- 2.5A
- Conduit Entry
- 1/2" - 14 NPT or M20 x 1.5
- Temperature Class (T Rating)
- T4 / T6
- Sensing Range with Magnet
- Up to the maximum in the magnet table
- Sensing Face Pressure Rating
- 2000psi / 138 bar
- Environmental Protection
- IP 66, 67 & 68 (24hrs at 30m)/ NEMA 4, 4X, 6 & 6P
- Safety Rating
- SIL 2 / SC3
- Actuation
- Magnetically
