Explosion Proof & Intrinsically Safe Proximity/Limit Switches SPDT/SPCO
Certifications / Approvals
Documents to view/download
Series Overview - 316 Stainless Steel Prox Switch with Multi Voltage Capability
The ES-7 Series Proximity Switch (5/8" UNF Thread) is highly adaptable and can be used in a multitude of applications where a reliable signal is required. Its unique construction allows it to be used in some of the most extreme environments from -60°C (-76F) to 175°C (347°F).
Volt free SPCO/SPDT (Form C) contacts as standard with the ability to use as Normally Open or Normally Closed devices. The ES-7 series offers versatility and multi-voltage flexibility by being able to switch either DC or AC at up to 240V.

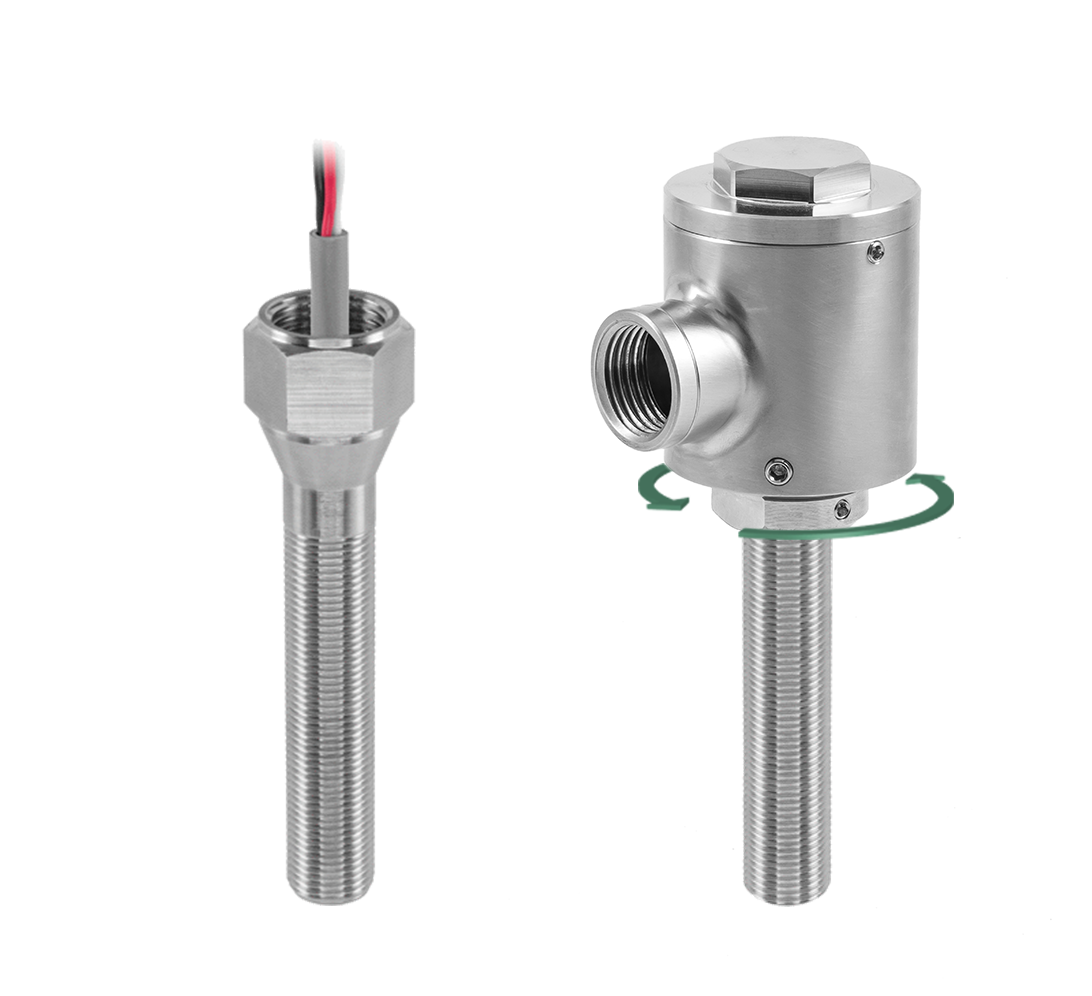

The mounting thread is 5/8"-18 UNF and is available either hardwired or with our wireable WLR integrated junction box/connection head. Euroswitch wireable proximity switches alleviate add on components and allow installation where space is at a premium.
The standard electrical conduit connection is 1/2"-14 NPT with an M20x1.5 metric option also available.
The presence of an external magnetic actuator is required for operation. Designed for end sensing. Sensing ranges are dependent on the magnetic actuators used.
The ES-7 Series is covered by the following hazardous area certifications.
|Explosion Proof:||IECEx & ATEX Ex d/db/tb (Zone 1 & Zone 21) ¦ UL/CSA (Class I & II, Div1 & Div2)|
|Intrinsically Safe:||IECEx & ATEX Ex ia (Zone 0 & Zone 20) ¦ UL/CSA IS (Zone 0)|
|Other Regional Approvals Include:||EAC/TRCU, INMETRO, KCs, CCOE/PESO, ECAS ex, NEPSI/CQST|
The ES-7 series proximity switches meet the requirements of IEC 61508:2010 Routes 1H & 1S with Systematic Capability (SC3) as an element/subsystem, and are suitable for use in safety related systems performing safety functions up to and including SIL 2 with HFT=0 (1oo1) and SIL 3 with HFT =1 (1oo2).
- Body Shape
- Body Material
- 316L Stainless Steel
- Contact Material
- Rhodium (Tungsten optional)
- Mounting Thread
- 5/8"-18 UNF (68.60mm / 2.70" long) c/w 2 x locknuts
- Max Current
- Conduit Entry
- 1/2" - 14 NPT
- Temperature Class (T Rating)
- T4 / T6
- Sensing Range with Magnet
- Up to the maximum in the magnet table
- Sensing Face Pressure Rating
- 2000psi / 138 bar
- Environmental Protection
- IP 66, 67 & 68 (24hrs at 30m)/ NEMA 4, 4X, 6 & 6P
- Safety Rating
- SIL 2 / SC3
All of our products are also available as Ordinary Location / General Industrial.
Please select your certification and protection concept for your specific requirement from the Part Number builder below
|Installation and Operating Instructions||English|
