Proximity Switch - Ferrous

UL & CSA Class I Division1 SPCO/SPDT Proximity Switches - FS-C Series
Certifications / Approvals




FS-C Series overview
The FS-C Series Proximity Switch (M18 Thread) is a versatile solution designed for CI I, Div 1, Grps A-D & CI II, Div 1 Grps E-G CI,III applications requiring dependable signaling. Using magnetic technology, it detects ferrous materials, including carbon steel and stainless steel (17/4 and 400 series), with a sensing range of 2.5 mm (0.1").
With its volt-free SPCO (Single Pole Change Over) or SPDT (Single Pole Double Throw) contacts, the switch can be used with numerous circuit designs.

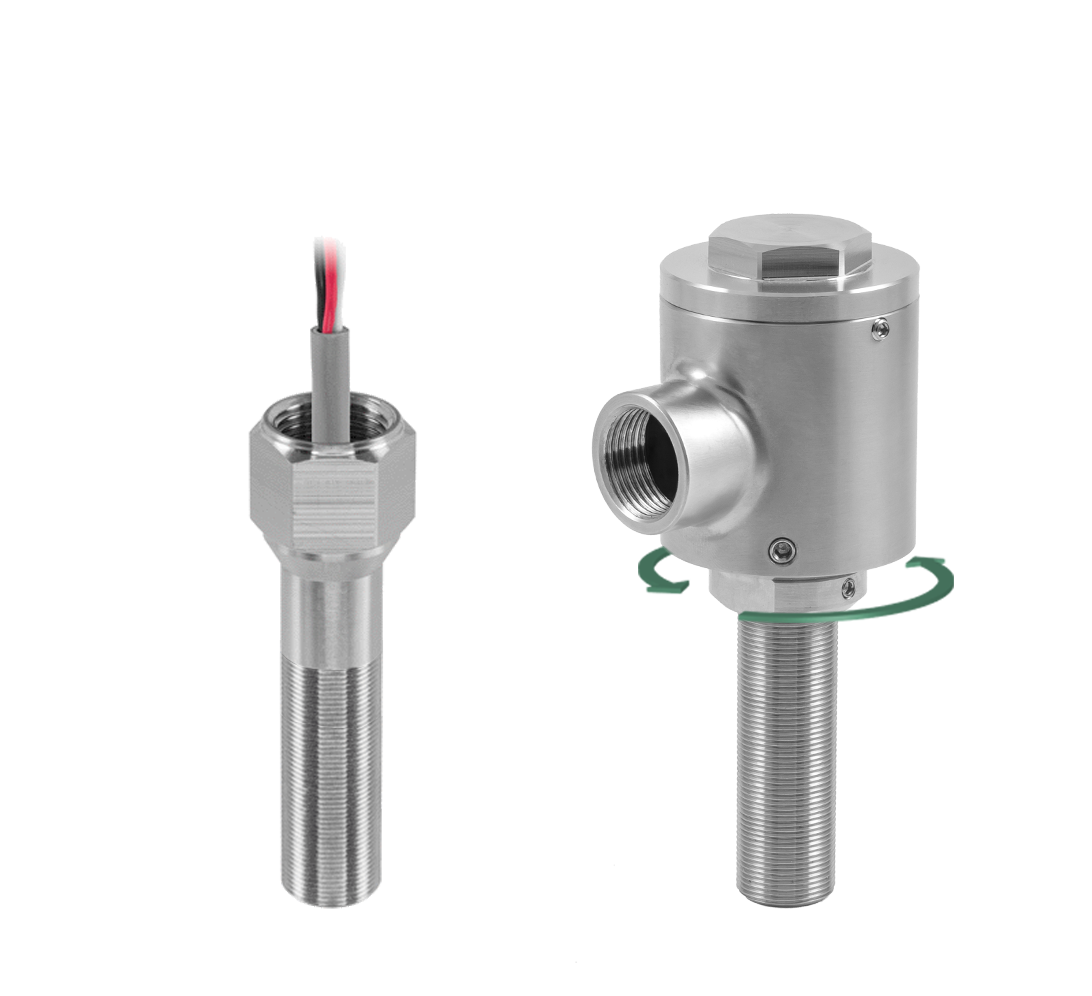

This series is available in a hardwired configuration as well as with four innovative wired options (W, WL, WLR, WLRT). The design incorporates a junction box and connection head in one package, simplifying installation and reducing the need for additional components, especially in areas with limited space.
The FS-C Series is covered by the following hazardous area certifications.
Explosion Proof: | IECEx & ATEX Exd (Zone 1 & Zone 21) ¦ UL/CSA (Class I & II, Div1 & Div2) |
Intrinsically Safe: | IECEx & ATEX Exia (Zone 0 & Zone 20) ¦ UL/CSA IS (Zone 0) |
Other Regional Approvals Include: | EAC/TRCU, INMETRO, KCs, CCOE/PESO, ECAS ex, CCC-Ex |
FS-C Series proximity switches are designed to meet rigorous safety standards, conforming to IEC 61508:2010 Routes 1H & 1S, and achieving Systematic Capability (SC3) as an element or subsystem. As well as performing safety functions up to SIL 2 with HFT=0 (1oo1) and SIL 3 with HFT=1 (1oo2), they are suitable for integration into safety-related systems.
- Body Shape
- Cylindrical
- Body Material
- 316L Stainless Steel
- Contact Arrangement
- SPCO / SPDT (Form C)
- Contact Material
- Palladium-Silver
- Max Current
- 4A
- Conduit Entry
- M20 x 1.5
- Temperature Class (T Rating)
- T3 / T4 / T6
- Operating Temperature Range
- -60°C to +204°C / -76°F to +400°F
- Sensing Face Pressure Rating
- 2000psi / 138 bar
- Environmental Protection
- IP 66, 67 & 68 (24hrs at 30m)/ NEMA 4X & 6P
- Safety Rating
- SIL 2 / SC3
- Actuation
- Ferrous Actuated (Magnet Optional)
- Mounting Thread
- M18x1.0 (47.75mm / 1.88" long) c/w 2 x locknuts
- Sensing Range with Magnet
- <12mm (0.47")
- Range (ferrous target)
- 2.5mm|0.10"
- Repeatability
- Approx. 0.05mm (0.002")
- Response Time
- 8 ms
- Differential / Hysteresis
- < 0.51mm (0.020")
All of our products are also available as Ordinary Location / General Industrial.
Please select your certification and protection concept for your specific requirement from the Part Number builder below
