Explosion Proof & Intrinsically Safe Vane Proximity Switches SPDT/SPCO
Certifications / Approvals
Documents to view/download
Series Overview - Ferrous Sensing Vane Proximity Switch with Multi Voltage Capability

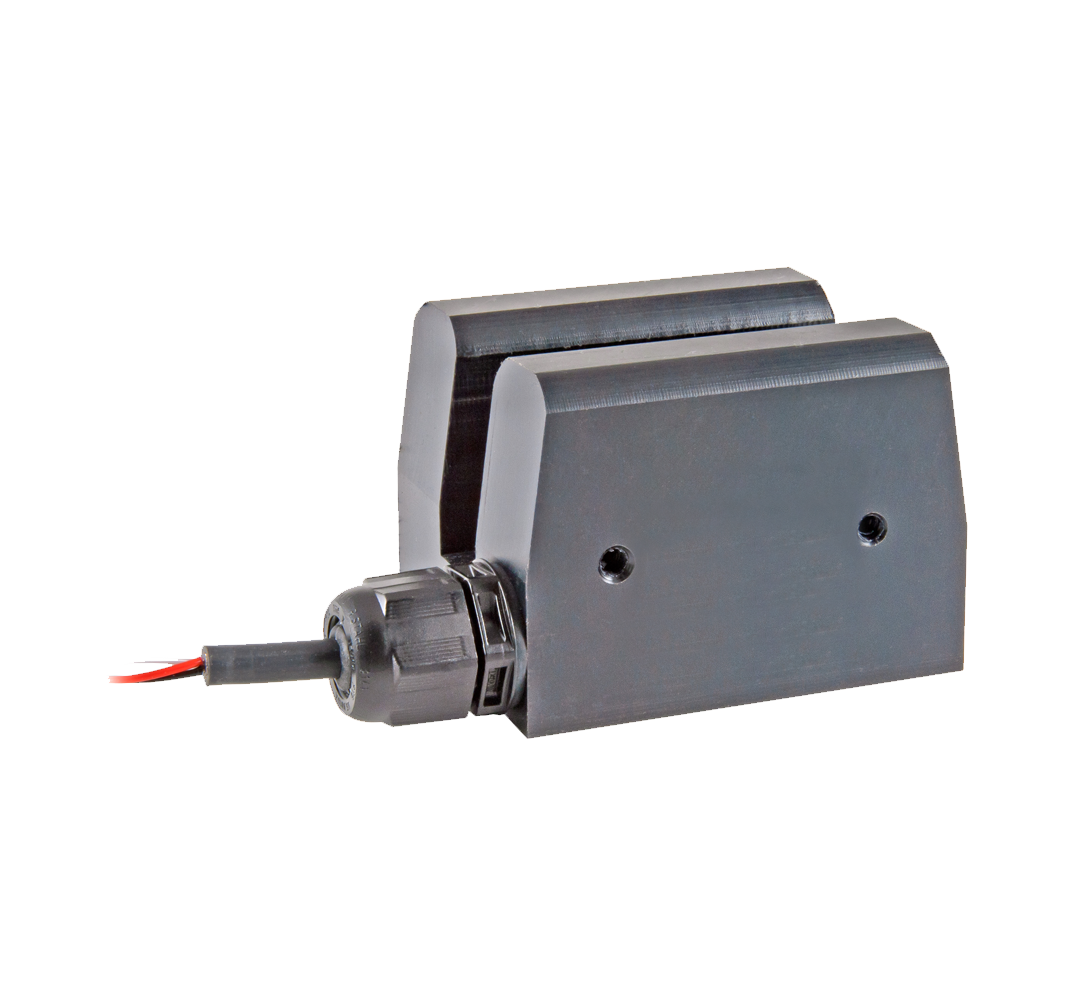

This Vane Switch is designed to detect a ferrous target (vane) passing through the central slot of the Glass Filled Nylon housing. The housing contains a built-in system of magnets and a fully sealed proximity switch from our ES-4 Series with SPCO / SPDT (Form C) , volt free, hermetically sealed contacts.
It requires the use of a ferro magnetic target such as mild steel to operate.
The standard model is designed to be mounted onto a non-ferrous surface. An special version is also available where mounting onto ferrous material cannot be avoided. This versatile switch provides highly reliable continuous monitoring across a wide operating temperature range.
Suitable for use in the design of safety functions up to SIL2 or SIL3.
Using the latest production methods and materials this product meets global certification requirements and its robust design makes it suitable for use in arduous and hazardous environments. Euroswitch products are also available with multi-approvals including combinations of the following global and regional certification standards;
The RS-U (ES-4) Series is covered by the following hazardous area certifications.
|Explosion Proof:||IECEx & ATEX Ex d/db/tb (Zone 1 & Zone 21) ¦ UL/CSA (Class I & II Div2)|
|Intrinsically Safe:||IECEx & ATEX Ex ia (Zone 0 & Zone 20) ¦ UL/CSA IS (Zone 0)|
|Other Regional Approvals Include:||EAC/TRCU, INMETRO, KCs, CCOE/PESO, ECAS ex, NEPSI/CQST|
These proximity switches meet the requirements of IEC 61508:2010 Routes 1H & 1S with Systematic Capability (SC3) as an element/subsystem, and are suitable for use in safety-related systems performing safety functions up to and including SIL 2 with HFT=0 (1oo1) and SIL 3 with HFT =1 (1oo2).
- Body Shape
- Vane Switch
- Body Material
- 316L Stainless Steel
- Contact Arrangement
- SPCO / SPDT (Form C)
- Contact Material
- Rhodium (Tungsten optional)
- 85mm x 70mm x 60mm
- Max Current
- Conduit Entry
- Temperature Class (T Rating)
- Sensing Range with Magnet
- Up to the maximum in the magnet table
- Environmental Protection
- IP 66, 67 & 68 (24hrs at 30m)/ NEMA 4, 4X, 6 & 6P
- Safety Rating
- SIL 2 / SC3
IEC 61508:2010; SC3 ¦ SIL 2 with HFT=0 (1oo1) and SIL 3 with HFT =1 (1oo2)
All of our products are also available as Ordinary Location / General Industrial.
Please select your certification and protection concept for your specific requirement from the Part Number builder below
