Proximity Switch - Ferrous
Intrinsically Safe Globally Certified Proximity Switch - FS-L Series
Certifications / Approvals
| Magnet Part No. | MA-1S | MA-2S | MA-3S | MA-4S | MA-7S |
|---|---|---|---|---|---|
| Sensing Range in mm (") | |||||
| Magnet Datasheets |
|
|
|
|
|
Documents to view/download
FS-L Series overview
FS-L Series Proximity Switches (5/8" UNF Thread) are globally certified and are perfect for applications such as metro, EAC, PESO, CCC, KC, TS Mark that require reliable signal performance. With IECEx certification and compliance with international standards, it ensures suitability for use in hazardous environments worldwide.
The FS-L Series utilises proven magnetic technology to detect ferrous materials, including carbon steel and stainless steel (17/4 or 400 series), at distances of up to 2.5mm (0.1"). As standard, it offers volt-free SPCO/SPDT (Form C) contacts.

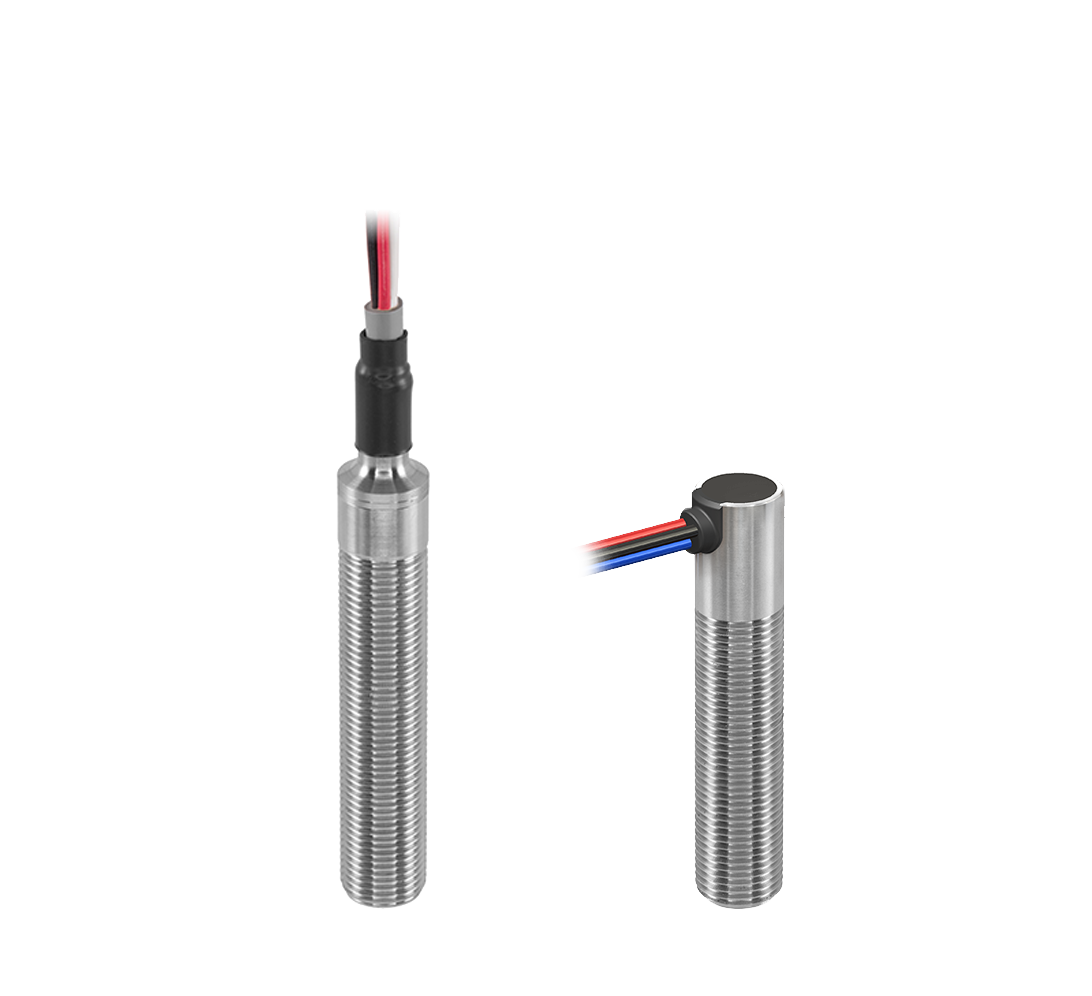

For compact installations, the FS-L series is available with side-exiting leads to minimise the switch's overall length.
Hazardous area certifications of the FS-L Series can be found below.
| Explosion Proof: | IECEx & ATEX Exd (Zone 1 & Zone 21) |
| Intrinsically Safe: | IECEx & ATEX Exia (Zone 0 & Zone 20) ¦ UL/CSA IS (Zone 0) |
| Other Regional Approvals Include: | EAC/TRCU, INMETRO, KCs, CCOE/PESO, ECAS ex, NEPSI/CQST |
Certified to IEC 61508:2010 (Routes 1H & 1S), the FS-L series delivers Systematic Capability (SC3) as an element/subsystem. It is engineered to integrate with safety-related systems, delivering safety functionality up to and including SIL 2 with HFT=0 (1oo1) and SIL 3 with HFT=1 (1oo2). Due to its robust design and globally recognized certifications, the FS-L series ensures exceptional reliability and compliance.
- Body Shape
- Cylindrical
- Body Material
- 316L Stainless Steel
- Contact Arrangement
- SPCO / SPDT (Form C)
- Contact Material
- Palladium-Silver
- Max Current
- 4A
- Conduit Entry
- No Conduit Entry
- Temperature Class (T Rating)
- T3 / T4 / T6
- Operating Temperature Range
- -60°C to +204°C / -76°F to +400°F
- Sensing Face Pressure Rating
- 2000psi / 138 bar
- Environmental Protection
- IP 66, 67 & 68 (24hrs at 30m)/ NEMA 4X & 6P
- Safety Rating
- SIL 2 / SC3
- Actuation
- Ferrous Actuated (Magnet Optional)
- Mounting Thread
- 5/8"-18 UNF (68.60mm / 2.70" long) c/w 2 x locknuts
- Sensing Range with Magnet
- <12mm (0.47")
- Range (ferrous target)
- 2.5mm|0.10"
- Repeatability
- Approx. 0.05mm (0.002")
- Response Time
- 8 ms
- Differential / Hysteresis
- < 0.51mm (0.020")
All of our products are also available as Ordinary Location / General Industrial.
Please select your certification and protection concept for your specific requirement from the Part Number builder below
