IECEx ATEX Exd UKEx Hazardous Area Proximity Switches - FS-Q Series
Certifications / Approvals
| Magnet Part No. | MA-1S | MA-4S | MA-7S | MA-8S |
|---|---|---|---|---|
| Sensing Range in mm (") | 2.5 (0.10") | 6.5 (0.26") | 10.5 (0.41") | 6.5 (0.26") |
| Magnet Datasheets |  | | | |
Documents to view/download
FS-Q Series Overview

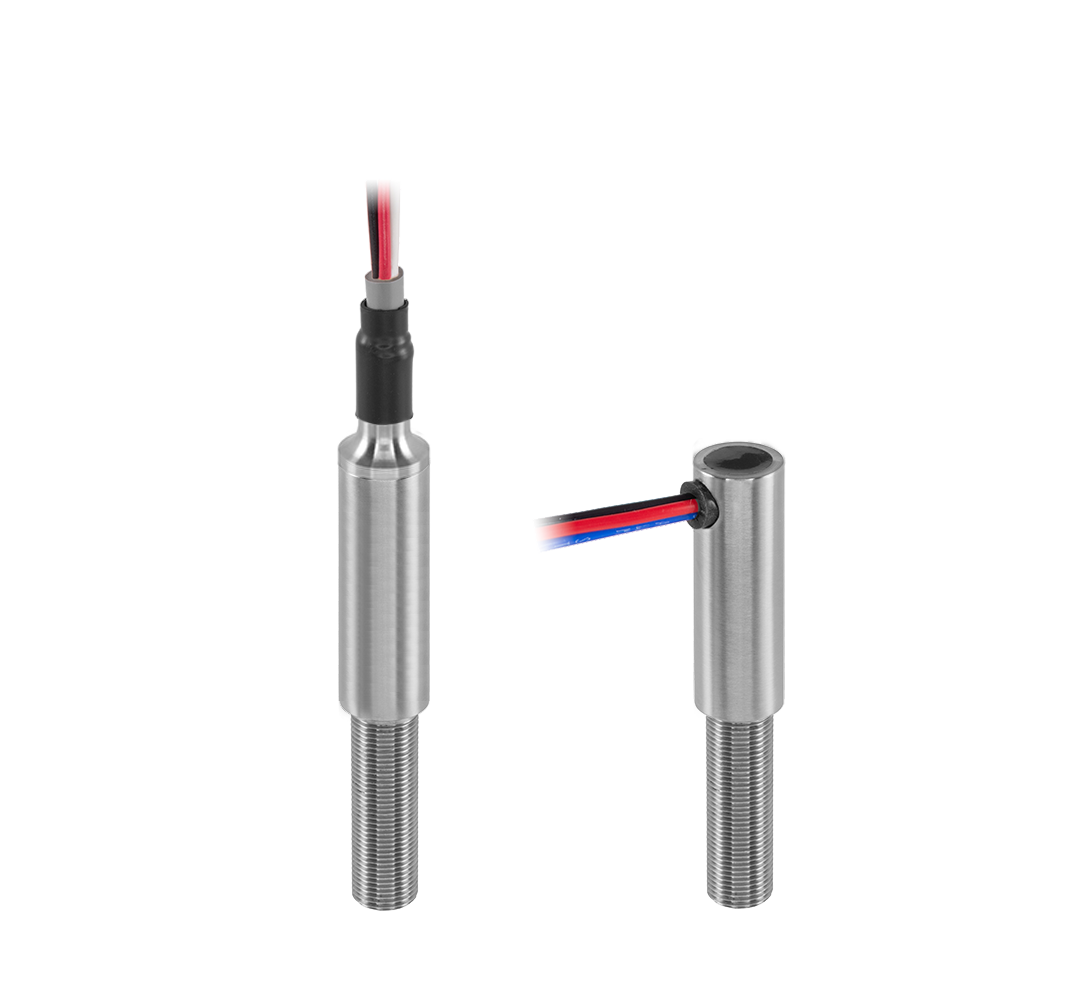

The FS-Q Series Proximity Switch with {{feature-key:mounting_product_description}} is designed for Hazardous area global standards compliance and high-pressure environments, offering exceptional versatility for applications demanding reliable signal performance.
By using advanced magnetic sensing technology, it can reliably detect ferrous materials, such as carbon steel and stainless steel (17/4 or 400 series), at distances upto 2.5mm. As standard, the switches are equipped with volt-free SPCO/SPDT (Form C) contacts.
FS-Q Series is certified for hazardous areas as follows.
| Explosion Proof: | IECEx & ATEX Ex d db tb (Zone 1 & 2 and Zone 21 & 22) UL/CSA Class I, Class II and Class III, Division 1 & Division 2 (Cl1 Div1 ; Cl2 Div1 ; Cl1 Div 2 ; Cl2 Div2) |
| Intrinsically Safe: | IECEx & ATEX Ex ia (Zone 0 & Zone 20) ¦ UL/CSA IS (Zone 0) |
| Other Regional Approvals Include: | EAC TRCU, INMETRO, KCs (KOSHA), PESO CCOE , ECAS ex, NEPSI CQST |
Built to handle demanding conditions, the FS-Q Series meets the stringent requirements of IEC 61508:2010 Routes 1H & 1S, achieving Systematic Capability (SC3) as an element/subsystem. They are globally certified for use in safety-related systems performing key safety functions, with suitability up to SIL 2 with HFT=0 (1oo1) and SIL 3 with HFT=1 (1oo2), ensuring high-performing performance under pressure in high-stakes scenarios.
- Housing Type
- Cylindrical with Cable
- Housing Material
- 316L Stainless Steel
- Contact Arrangement
- SPCO / SPDT (Form C)
- Contact Material
- Palladium-Silver
- Maximum Current
- 4A
- Temperature Class (T Rating)
- T3 / T4 / T6
- Operating Temperature Range
- -60°C to +204°C / -76°F to +400°F
- Sensing Face Pressure Rating
- 2,000psi / 138 bar
- Environmental protection
- IP 66, 67 & 68 (24hrs at 30m)/ NEMA 4X & 6P
- Safety Rating
- SIL 2 / SC3
- Actuation
- Ferrous Actuated (Magnet Optional)
- Mounting
- M12x1.0 (39.37mm / 1.55" long) c/w 2 x locknuts
- Sensing Range with Magnet
- <12mm (0.47")
- Range (ferrous target)
- 1.0mm / 0.04
- Repeatability
- Approx. 0.05mm (0.002")
- Response Time
- 8 ms
- Differential Hysteresis
- < 0.51mm (0.020") axial
All of our products are also available as Ordinary Location / General Industrial.
Please select your certification and protection concept for your specific requirement from the Part Number builder below
