Proximity Switch - Ferrous
UL/CSA Class I Proximity Switch - Wireable Junction Box - FS-E Series
Certifications / Approvals
| Magnet Part No. | MA-1S | MA-2S | MA-3S | MA-4S | MA-7S |
|---|---|---|---|---|---|
| Sensing Range in mm (") | |||||
| Magnet Datasheets |
|
|
|
|
|
Documents to view/download
FS-E Series overview

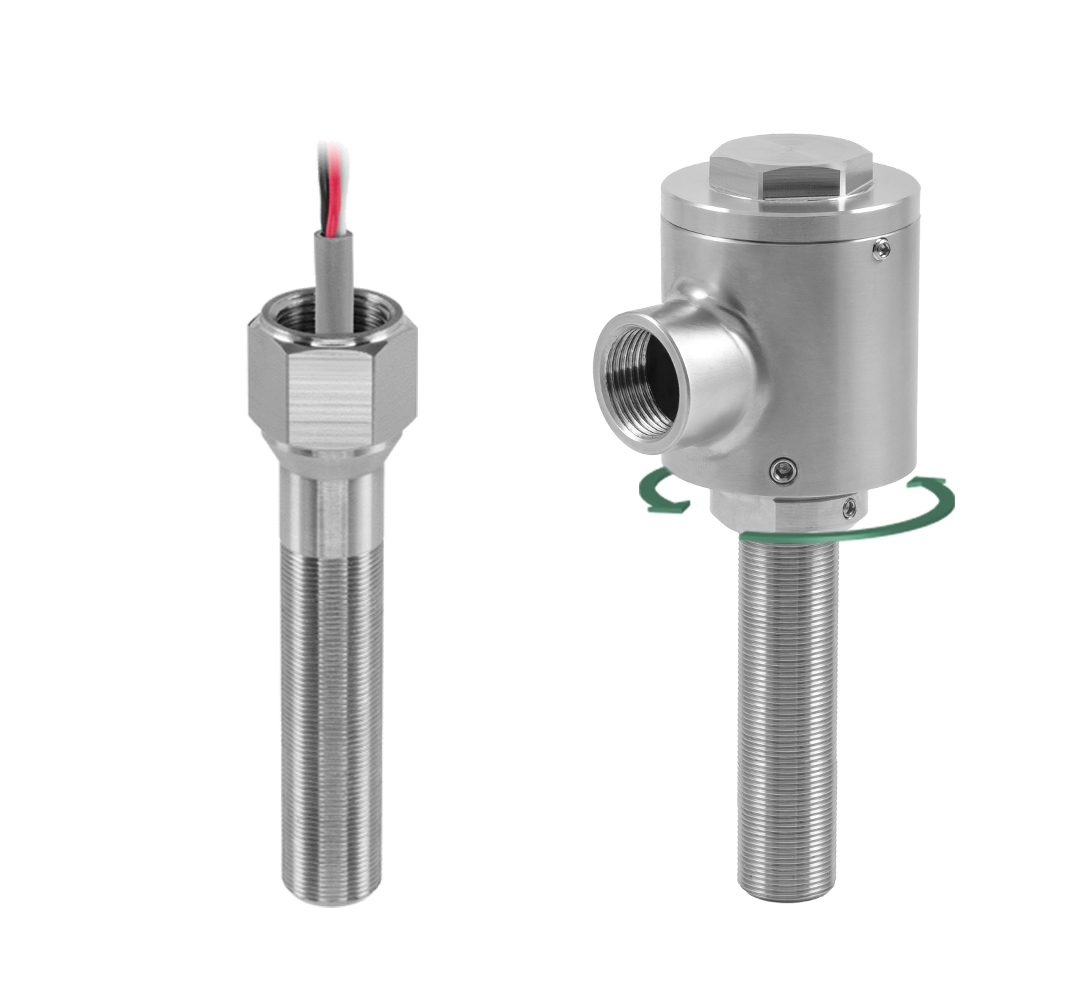

This FS-E Series Proximity Switch (M18 Thread) provides a reliable, flexible solution for CI I, Div 1, Grps A-D & CI II, Div 1, Grps E-G CI,III applications requiring precision signal detection. With the help of advanced magnetic technology, these switches can detect ferrous materials, such as carbon steel or stainless steel (17/4 or 400 series), at distances up to 2.5mm (0.1"). They come equipped with volt-free SPCO/SPDT (Form C) contacts as standard.
In addition to the hardwired version, the FS-E Series offers three wireable options (W, WL, WLR). These wireable configurations utilise an innovative integrated junction box/connection head design that eliminates the need for additional components and allows them to be installed in compact spaces.
The FS-E Series is covered by the following hazardous area certifications.
| Explosion Proof: | IECEx & ATEX Exd (Zone 1 & Zone 21) ¦ UL/CSA (Class I & II, Div1 & Div2) |
| Intrinsically Safe: | IECEx & ATEX Exia (Zone 0 & Zone 20) ¦ UL/CSA IS (Zone 0) |
| Other Regional Approvals Include: | EAC/TRCU, INMETRO, KCs, CCOE/PESO, ECAS ex, NEPSI/CQST |
The FS-E Series is certified for use in safety-related systems that perform safety functions in accordance with IEC 61508:2010 Routes 1H & 1S with Systematic Capability (SC3). These switches are certified up to SIL 2 with HFT=0 (1oo1) and SIL 3 with HFT=1 (1oo2), making them a dependable choice for high-stakes environments.
- Body Shape
- Cylindrical
- Body Material
- 316L Stainless Steel
- Disposizione contatti
- SPCO / SPDT (Form C)
- Contact Material
- Palladium-Silver
- Max Current
- 4A
- Conduit Entry
- M20 x 1.5
- Temperature Class (T Rating)
- T3 / T4 / T6
- Operating Temperature Range
- -60°C to +204°C / -76°F to +400°F
- Sensing Face Pressure Rating
- 2000psi / 138 bar
- Environmental Protection
- IP 66, 67 & 68 (24hrs at 30m)/ NEMA 4X & 6P
- Safety Rating
- SIL 2 / SC3
- Actuation
- Ferrous Actuated (Magnet Optional)
- Mounting Thread
- M18x1.0 (68.60mm / 2.70" long) c/w 2 x locknuts
- Sensing Range with Magnet
- <12mm (0.47")
- Range (ferrous target)
- 2.5mm|0.10"
- Repeatability
- Approx. 0.05mm (0.002")
- Response Time
- 8 ms
- Differential / Hysteresis
- < 0.51mm (0.020")
All of our products are also available as Ordinary Location / General Industrial.
Please select your certification and protection concept for your specific requirement from the Part Number builder below
| Document | Language |
|---|---|
| Installation and Operating Instructions |
 English
|
| Installation and Operating Instructions |
Spanish
|
| Installation and Operating Instructions |
Italian
|
| Installation and Operating Instructions |
German
|
| Installation and Operating Instructions |
Russian
|
| Installation and Operating Instructions |
Portuguese
|
| Installation and Operating Instructions |
French
|
| Installation and Operating Instructions |
Chinese
|
