Proximity Switch - Ferrous

UL & CSA Intrinsically Proximity switch with line fault monitoring - FS-N Series
Certifications / Approvals

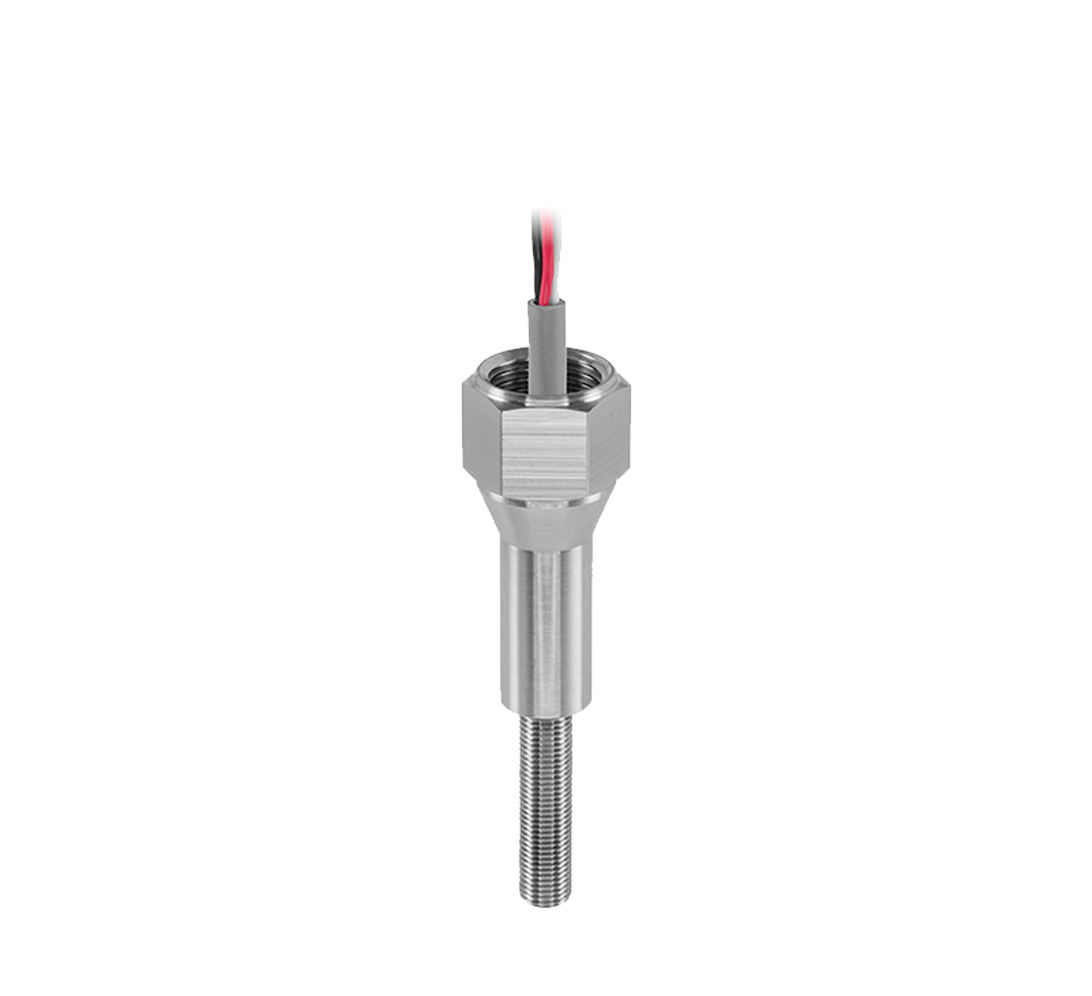

FS-N Series overview
The FS-N Series Proximity Switch (3/8""" UNF Thread) is highly versatile and can be used for line fault monitoring in applications that need NO (Normally Open Contacts) or NC (Normally Closed Contacts).
Using proven magnetic technology, they can sense ferrous materials such as carbon steel or stainless steel (17/4 or 400 series) at up to 1.0mm (0.039""""). A volt free SPCO/SPDT (Form C) contact is included as standard.
Hazardous area certifications for the FS-N Series are listed below.
Explosion Proof: | IECEx & ATEX Exd (Zone 1 & Zone 21) ¦ UL/CSA (Class I, Div1) |
Intrinsically Safe: | IECEx & ATEX Exia (Zone 0 & Zone 20) ¦ UL/CSA IS (Zone 0) |
Other Regional Approvals Include: | EAC/TRCU, INMETRO, KCs, CCOE/PESO, ECAS ex, NEPSI/CQST |
In addition to meeting the requirements of IEC 61508:2010 Routes 1H & 1S with Systematic Capability (SC3), the FS-N series proximity switches are also suitable for safety related systems performing safety functions up to and including SIL 2 with HFT=0 (1oo1) and SIL 3 with HFT =1 (1oo2).
- Body Shape
- Cylindrical
- Body Material
- 316L Stainless Steel
- Contact Arrangement
- SPCO / SPDT (Form C)
- Contact Material
- Palladium-Silver
- Max Current
- 4A
- Conduit Entry
- 1/2" NPT
- Temperature Class (T Rating)
- T3 / T4 / T6
- Operating Temperature Range
- -60°C to +204°C / -76°F to +400°F
- Sensing Face Pressure Rating
- 2000psi / 138 bar
- Environmental Protection
- IP 66, 67 & 68 (24hrs at 30m)/ NEMA 4X & 6P
- Safety Rating
- SIL 2 / SC3
- Actuation
- Ferrous Actuated (Magnet Optional)
- Mounting Thread
- 3/8"-24 UNF (39.37mm / 1.55" long) c/w 2 x locknuts
- Sensing Range with Magnet
- <12mm (0.47")
- Range (ferrous target)
- 1.0mm|0.04"
- Repeatability
- Approx. 0.05mm (0.002")
- Response Time
- 8 ms
- Differential / Hysteresis
- < 0.51mm (0.020")
All of our products are also available as Ordinary Location / General Industrial.
Please select your certification and protection concept for your specific requirement from the Part Number builder below
