Proximity Switch - Ferrous

IECEx / ATEX Line Fault Monitoring Proximity Switch - FS-P Series
Certifications / Approvals






FS-P Series overview

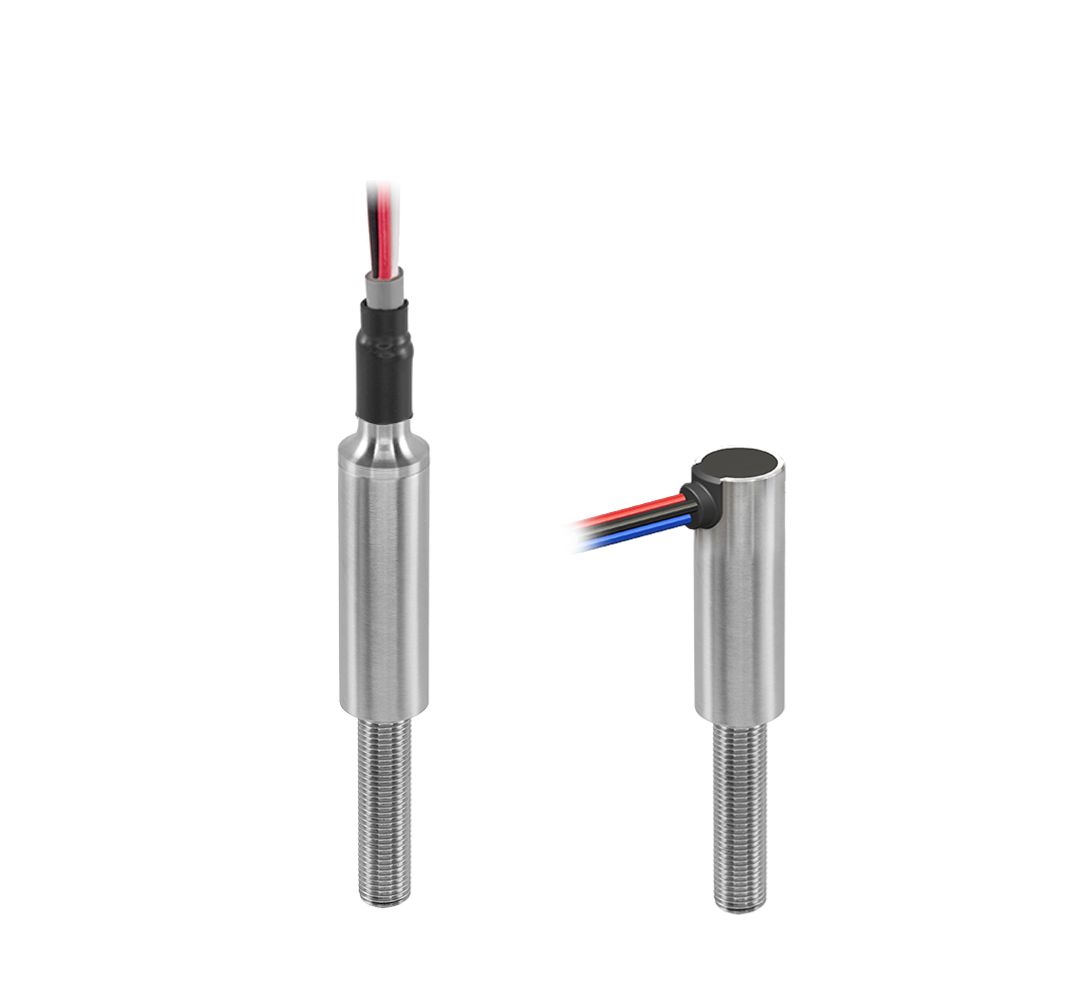

FS-P Series Proximity Switch (3/8" UNF Thread) has a wide range of applications where reliable signals are required.
The switch uses proven magnetic technology, which enables it to sense ferrous material at a distance of up to 1.0mm (0.039). It utilises volt free SPCO/SPDT (Form C) contacts as standard.
When packaging space is limited, the FS-P series is available with side-exiting leads that reduce the overall switch length.
The FS-P Series is covered by the following hazardous area certifications.
Explosion Proof: | IECEx & ATEX Exd (Zone 1 & Zone 21) |
Intrinsically Safe: | IECEx & ATEX Exia (Zone 0 & Zone 20) ¦ UL/CSA IS (Zone 0) |
Other Regional Approvals Include: | EAC/TRCU, INMETRO, KCs, CCOE/PESO, ECAS ex, NEPSI/CQST |
With Systematic Capability (SC3), the FS-P proximity switches meet the requirements of IEC 61508:2010 Route 1H & 1S as an element/subsystem, and are suitable for use in safety related systems up to and including SIL 2 with HFT=0 (1oo1) and SIL 3 with HFT =1 (1oo2).
- Body Shape
- Cylindrical
- Body Material
- 316L Stainless Steel
- Contact Arrangement
- SPCO / SPDT (Form C)
- Contact Material
- Palladium-Silver
- Max Current
- 4A
- Conduit Entry
- No Conduit Entry
- Temperature Class (T Rating)
- T3 / T4 / T6
- Operating Temperature Range
- -60°C to +204°C / -76°F to +400°F
- Sensing Face Pressure Rating
- 2000psi / 138 bar
- Environmental Protection
- IP 66, 67 & 68 (24hrs at 30m)/ NEMA 4X & 6P
- Safety Rating
- SIL 2 / SC3
- Actuation
- Ferrous Actuated (Magnet Optional)
- Mounting Thread
- 3/8"-24 UNF (39.37mm / 1.55" long) c/w 2 x locknuts
- Sensing Range with Magnet
- <12mm (0.47")
- Range (ferrous target)
- 1.0mm|0.04"
- Repeatability
- Approx. 0.05mm (0.002")
- Response Time
- 8 ms
- Differential / Hysteresis
- < 0.51mm (0.020")
All of our products are also available as Ordinary Location / General Industrial.
Please select your certification and protection concept for your specific requirement from the Part Number builder below
