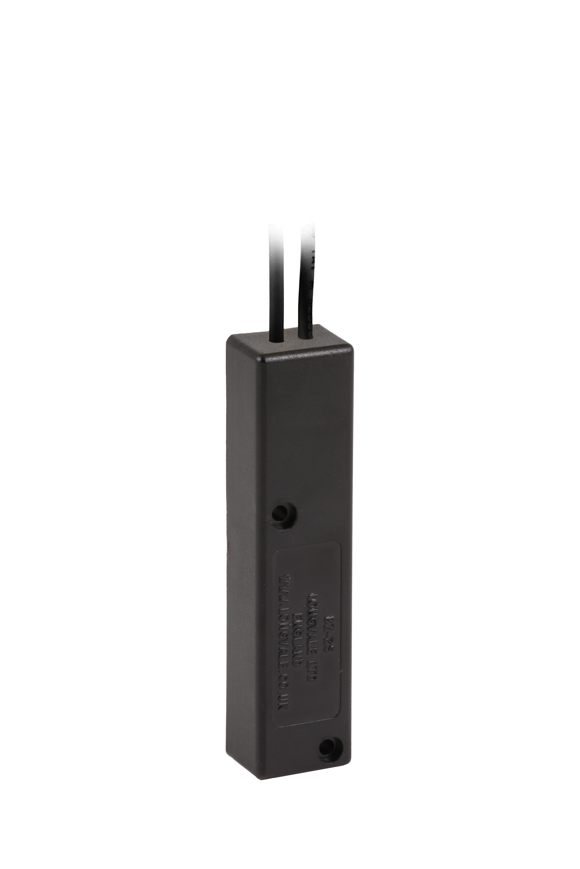

Euroswitch Rail Door Switch
|Magnet Part No.||MA-1S||MA-2S||MA-3S||MA-4S||MA-7S|
|Sensing Range in mm (")||3.5mm|
Documents to view/download
Euroswitch Rail Door Switch for General Industrial Use
This Rail Door Switch has an Engineered Resin Rectangular Housing with N/O / SPST, volt free Silver Alloy contacts. It has a maximum switching current of 3A/28vDC (Max inrush 30A). It requires the use of a magnetic target to operate.
Switch is manufactured to and meets the current UK RIA standards for Rail and tracƟon industries, and is suitable for use in the design of safety functions up to SIL2 or SIL3.
Using the latest production methods and materials this product meets global certification requirements and its robust design makes it suitable for use in arduous and hazardous environments.
The switch is manufactured to and meets the current UK RIA standards for Rail and traction industries.
Euroswitch proximity switches have been designed using the latest materials and production methods offering industry a highly dependable hermetically sealed sensor for use in the most hazardous applications. Euroswitch sensors operate with the use of an external actuator and are ideal for all sensing applications where a reliable signal is required.
- Body Shape
- Contact Arrangement
- NO / SPST (Form A)
- Contact Material
- Silver Alloy
- Max Current
- 3A/28vDC (Max inrush 30A)
- 2 x Radox GKW-K Lead Wires
- Connection Text
- Supplied with 2 x Radox GKW-K Lead Wires
- General Industrial, Safety Integrity Level (SIL)
- Hazardous Location
- Temperature Class (T Rating)
- Operating Temperature
- -20°C to +80°C / -4°F to +176°F
- Environmental Protection
- IP66, 67, 68
- Safety Rating
- SIL 3
- 95mm x 23mm x 17mm
All of our products are also available as Ordinary Location / General Industrial.
