Proximity Switch - Ferrous
Hermetically Sealed Explosion Proof & Intrinsically Safe Proximity/Limit Switches SPDT/SPCO - FS-H Series
Certifications / Approvals
| Magnet Part No. | MA-1S | MA-2S | MA-3S | MA-4S | MA-7S |
|---|---|---|---|---|---|
| Sensing Range in mm (") | |||||
| Magnet Datasheets |
|
|
|
|
|
Documents to view/download
FS-H Series overview

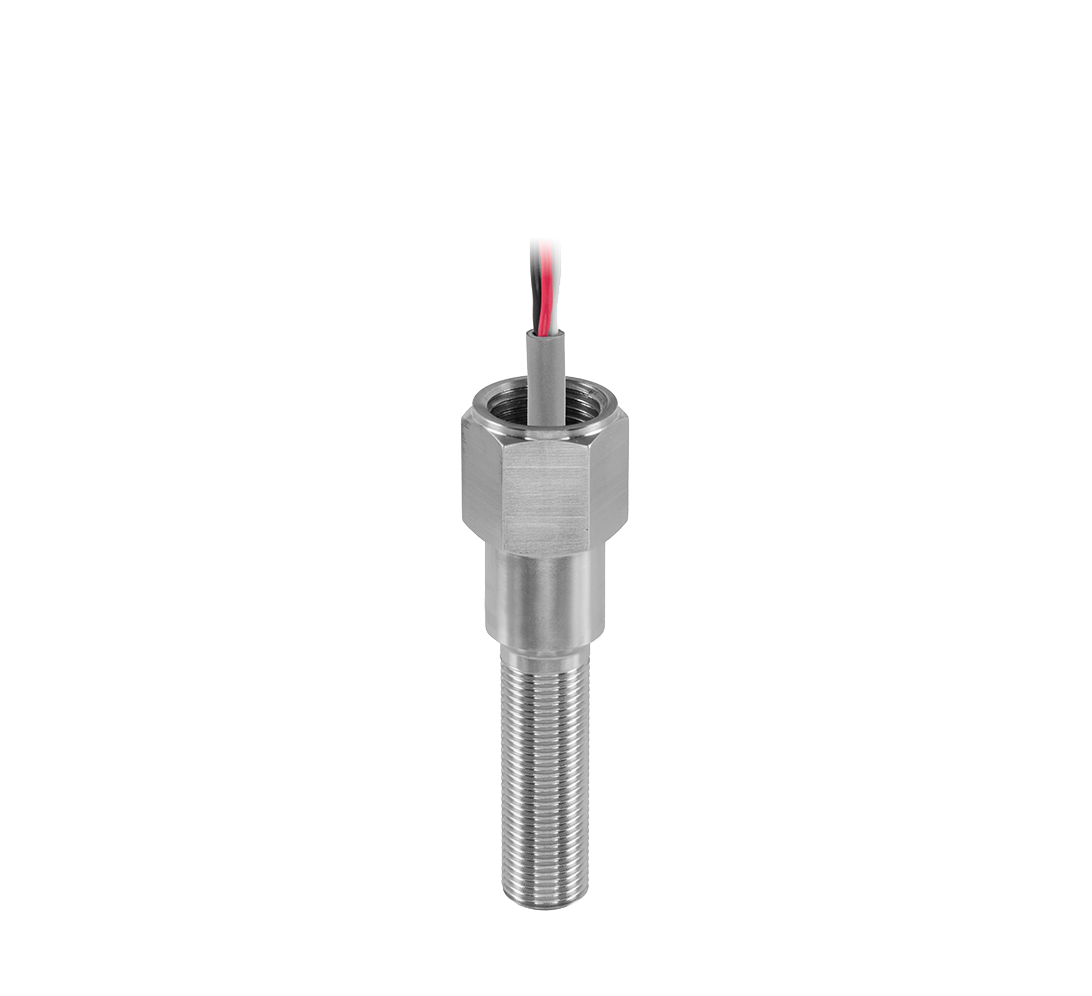

The FS-H Series Proximity Switch (5/8" UNF Thread) is available with a hermetic glass seal that is suitable for Zone 1/21 or Zone 2/22 Ex d applications where a reliable signal is required.
Using proven magnetic technology, they can detect ferrous material, such as carbon steel or stainless steel (17/4 or 400 series), at up to 2.5mm (0.10"). They are available with volt-free SPCO/SPDT (Form C) contacts or hermetically sealed options.
FS-H Series is certified in hazardous areas according to the following standards.
| Explosion Proof: | IECEx & ATEX Ex d/db/tb (Zone 1 & Zone 21) ¦ UL/CSA (Class I, Div1) |
| Intrinsically Safe: | IECEx & ATEX Ex ia (Zone 0 & Zone 20) ¦ UL/CSA IS (Zone 0) |
| Other Regional Approvals Include: | EAC/TRCU, INMETRO, KCs, CCOE/PESO, ECAS ex, NEPSI/CQST |
The FS-H series proximity switches meet the requirements of IEC 61508:2010 Routes 1H & 1S with Systematic Capability (SC3) as an element/subsystem, and can be used in safety related systems to perform safety functions up to and including SIL 2 with HFT=0 (1oo1) and SIL 3 with HFT =1 (1oo2).
- Body Shape
- Cylindrical
- Body Material
- 316L Stainless Steel
- Contact Arrangement
- SPCO / SPDT (Form C)
- Contact Material
- Palladium-Silver
- Max Current
- 4A
- Conduit Entry
- 1/2" NPT
- Temperature Class (T Rating)
- T3 / T4 / T6
- Operating Temperature Range
- -60°C to +204°C / -76°F to +400°F
- Sensing Face Pressure Rating
- 2000psi / 138 bar
- Environmental Protection
- IP 66, 67 & 68 (24hrs at 30m)/ NEMA 4X & 6P
- Safety Rating
- SIL 2 / SC3
- Actuation
- Ferrous Actuated (Magnet Optional)
- Mounting Thread
- 5/8"-18 UNF (47.75 mm / 1.88" long) c/w 2 x locknuts
- Sensing Range with Magnet
- <12mm (0.47")
- Range (ferrous target)
- 2.5mm|0.10"
- Repeatability
- Approx. 0.05mm (0.002")
- Response Time
- 8 ms
- Differential / Hysteresis
- < 0.51mm (0.020")
