Proximity Switch - Magnetic
Explosion Proof & Intrinsically Safe Proximity/Limit Switches SPDT/SPCO
Certifications / Approvals
|Magnet Part No.||MA-1S||MA-2S||MA-3S||MA-4S||MA-7S|
|Sensing Range in mm (")|
Documents to view/download
Series Overview - 316 Stainless Steel Prox Switch with Multi Voltage Capability

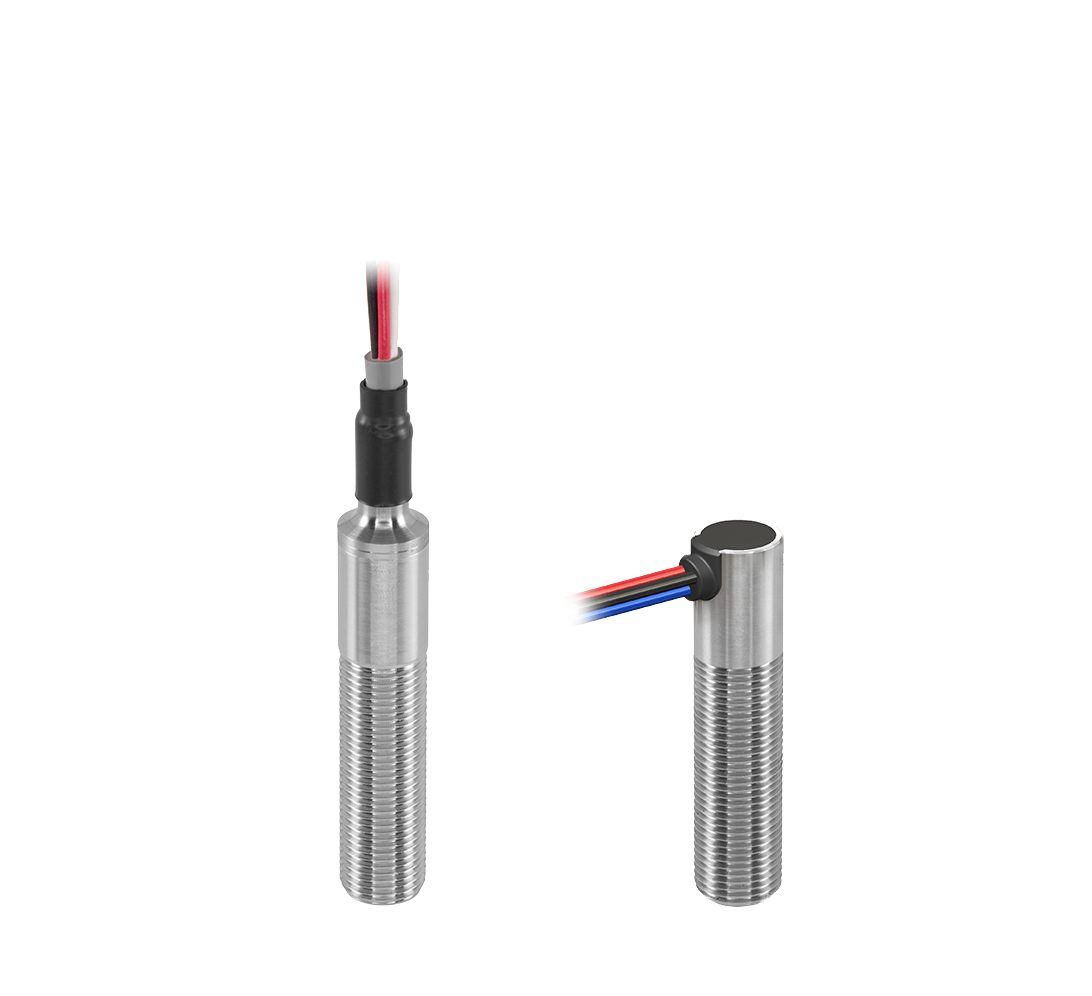

The ES-9 Series Proximity Switch is highly adaptable and can be used in a multitude of applications where a reliable signal is required.
Volt free SPCO/SPDT (Form C) contacts as standard with the ability to use as Normally Open or Normally Closed devices. The ES-9 series offers versatility and multi-voltage flexibility by being able to switch either DC or AC at up to 240V.
The mounting thread is 5/8"-18 UNF and due to its small size allows installation where space is at a premium. It is available hardwired with a range of cable and lead types to suit the application.
The presence of an external magnetic actuator is required for operation. Designed for end sensing. Sensing ranges are dependent on the magnetic actuators used.
The ES-9 Series is covered by the following hazardous area certifications.
|Explosion Proof:||IECEx & ATEX Ex d/db/tb (Zone 1 & Zone 21) ¦ UL/CSA (Class I & II Div2)|
|Intrinsically Safe:||IECEx & ATEX Ex ia (Zone 0 & Zone 20) ¦ UL/CSA IS (Zone 0)|
|Other Regional Approvals Include:||EAC/TRCU, INMETRO, KCs, CCOE/PESO, ECAS ex, NEPSI/CQST|
The ES-9 series proximity switches meet the requirements of IEC 61508:2010 Routes 1H & 1S with Systematic Capability (SC3) as an element/subsystem, and are suitable for use in safety related systems performing safety functions up to and including SIL 2 with HFT=0 (1oo1) and SIL 3 with HFT =1 (1oo2).
- Body Shape
- Body Material
- 316L Stainless Steel
- Contact Material
- Rhodium (Tungsten optional)
- Mounting Thread
- 5/8"-18 UNF (47.60mm / 1.87" long) c/w 2 x locknuts
- Max Current
- Conduit Entry
- No Conduit Entry
- Temperature Class (T Rating)
- T4 / T6
- Sensing Range with Magnet
- Up to the maximum in the magnet table
- Sensing Face Pressure Rating
- 2000psi / 138 bar
- Environmental Protection
- IP 66, 67 & 68 (24hrs at 30m)/ NEMA 4, 4X, 6 & 6P
- Safety Rating
- SIL 2 / SC3
All of our products are also available as Ordinary Location / General Industrial.
Please select your certification and protection concept for your specific requirement from the Part Number builder below
|Installation and Operating Instructions||English|
