UL Zone 0 Intrinsically Safe, NAMUR Proximity/Limit Switches - FS-O Series

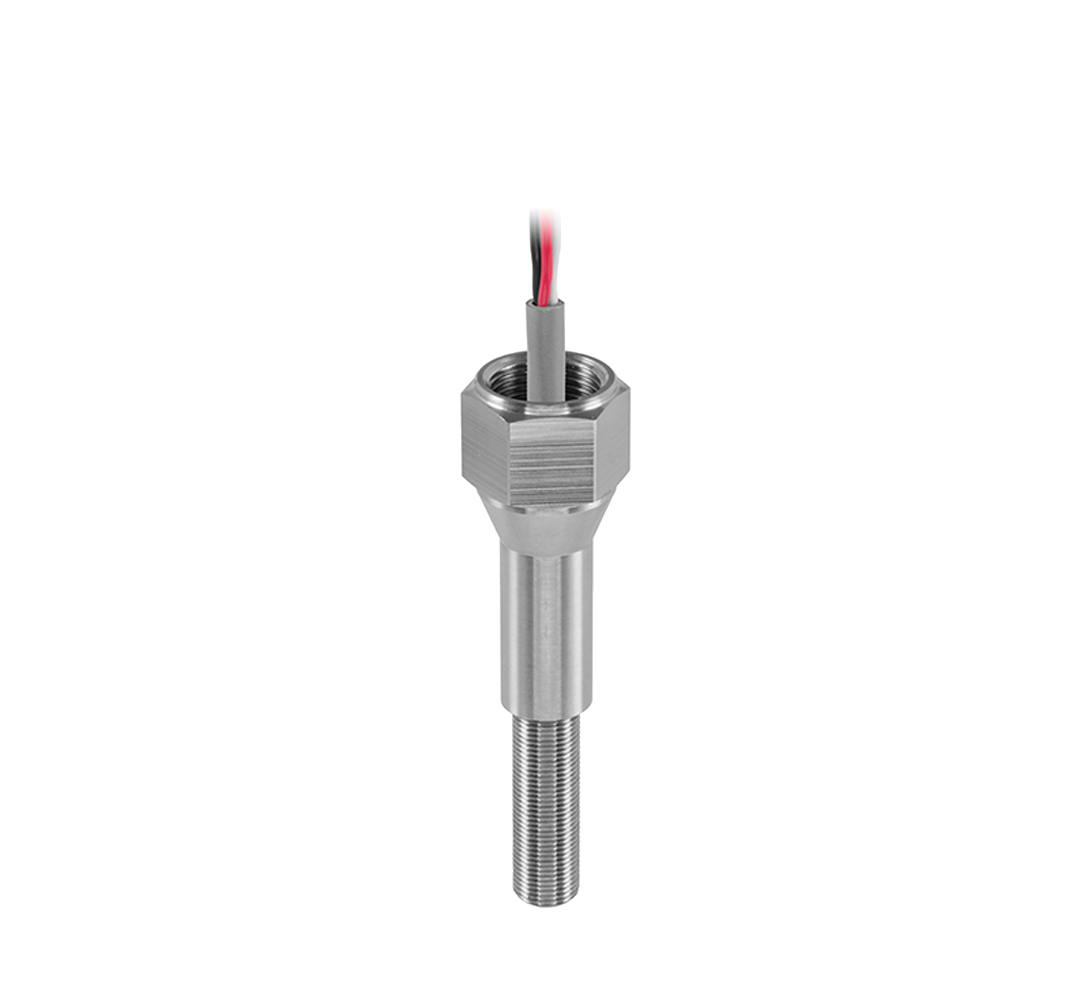

FS-O Series overview
With its M12 thread, the FS-O Series Proximity Switch is extremely adaptable and suitable for applications requiring a reliable signal in UL and CSA Class I, II, III, Div 1, Zone 0 intrinsically safe applications.
Utilising proven magnetic technology, they can sense ferrous steel or stainless steel (17/4 or 400 series) at up to 1.0mm (0.039"). These sensors have volt-free SPCO/SPDT (Form C) contacts.
Hazardous area certifications for the FS-O Series are listed below.
| Explosion Proof: | IECEx & ATEX Exd (Zone 1 & Zone 21) ¦ UL/CSA (Class I, Div1) |
| Intrinsically Safe: | IECEx & ATEX Exia (Zone 0 & Zone 20) ¦ UL/CSA IS (Zone 0) |
| Other Regional Approvals Include: | EAC/TRCU, INMETRO, KCs, CCOE/PESO, ECAS ex, NEPSI/CQST |
The FS-O series proximity switches meet the requirements of IEC 61508:2010 Routes 1H & 1S with Systematic Capability (SC3) as an element/subsystem, and are suitable for use in safety related systems performing safety functions up to and including SIL 2 with HFT=0 (1oo1) and SIL 3 with HFT =1 (1oo2).
- Body Shape
- Cylindrical
- Body Style
- Cylindrical with cable
- Contact Arrangement
- SPCO / SPDT (Form C)
- Max Current
- 4A
- Connection Type
- Cable
- Connection Entry
- 1/2" NPT or M20 x 1.5
- Temperature Class (T Rating)
- T6 / T4 (Can also be used in T5 & T3)
- Environmental Protection
- IP 66, 67 & 68 / NEMA 4, 4X, 6, & 6P
- Safety Rating
- SC3; SIL 2 with HFT=0 (1oo1) and SIL 3 with HFT =1 (1oo2)
- Dimensions
- M12x1.0 (39.37mm / 1.55" Long)
- Mounting
- M12x1.0 (39.37mm / 1.55" Long)
All of our products are also available as Ordinary Location / General Industrial.
Please select your certification and protection concept for your specific requirement from the Part Number builder below
