Underwater Proximity Sensors / Submersible Limit Switch Range
Euroswitch specialises in advanced underwater proximity sensors and submersible limit switches, tailored for exceptional performance in subsea environments.
Reliable Subsea Proximity Sensor Applications

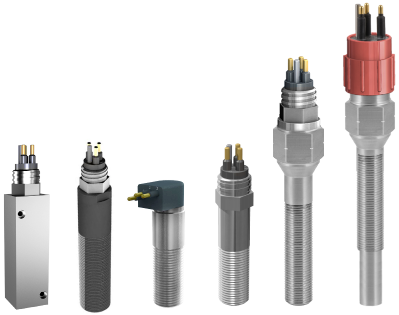

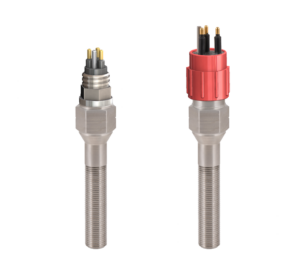

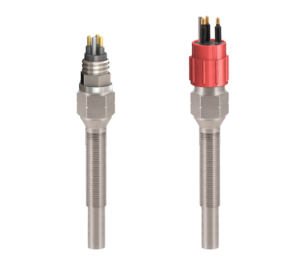

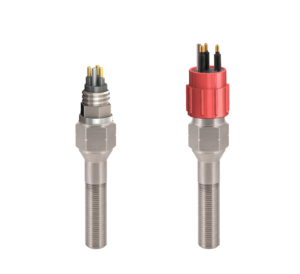

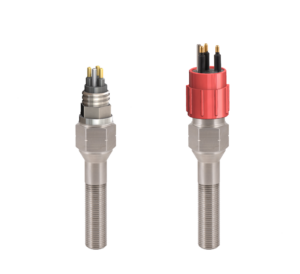

Euroswitch presents the FS Subsea series, engineered for superior underwater performance. Our underwater proximity sensors are designed to reliably detect ferrous steel.
Extended sensing ranges can be achieved with the use of an external actuator. These sensors, part of our robust submersible limit switch range, are certified to function at depths up to 6850m (10,000psi), these switches are available in various lengths and marine-grade housing materials, including standard 316 Stainless Steel and options like Inconel and Titanium.
Our prox switches boast remarkable precision with repeatability of 0.05mm and low hysteresis below 0.5mm, tailored for tasks that require the utmost accuracy under challenging conditions. And our custom-length mating cables tailored to specific customer requirements, ensure a seamless and secure setup in any subsea operation.
We are able to offer a broad range of proven submersible solutions to meet specific customer requirements including:
Marine Grade Limit Switch Features
- Certified for depths of 6850m / 10,000psi
- Multiple Subsea connector options available
- 316 Stainless Steel as standard with options for Inconel, Hastelloy, Titanium etc.
- Use either A/C or D/C, N/O or N/C
- SPDT or DPDT contacts
- Multi-voltage switching
- Volt free contacts
- Repeatability of 0.05mm
- Low hysteresis (<0.5mm)
- Bespoke options available
Advanced Subsea Connection Options
- Fully certified underwater connector options are available on the majority of our ES and FS Series Proximity/Limit Switches.
- We are able to offer a broad range of proven connector types to meet specific customer requirements including dry-mate, wet-mate and compact right-angle connectors.
- We can supply own Euroswitch fully submersible connectors or from manufacturers such as SubConn, Seacon, and Impulse.
- We can also Overmould connectors and cable directly onto our switches for a robust watertight connection.
- Mating cable can be supplied in various lengths to the exact customer requirement.
