Proximity Switch - Resin
Series Overview - Engineered Resin Prox Switch with Multi Voltage Capability
Certifications / Approvals
|Magnet Part No.||MA-1S||MA-2S||MA-3S||MA-4S||MA-7S|
|Sensing Range in mm (")|
Documents to view/download
Intrinsically Safe Proximity/Limit Switches SPDT/SPCO or DPDT/DPCO

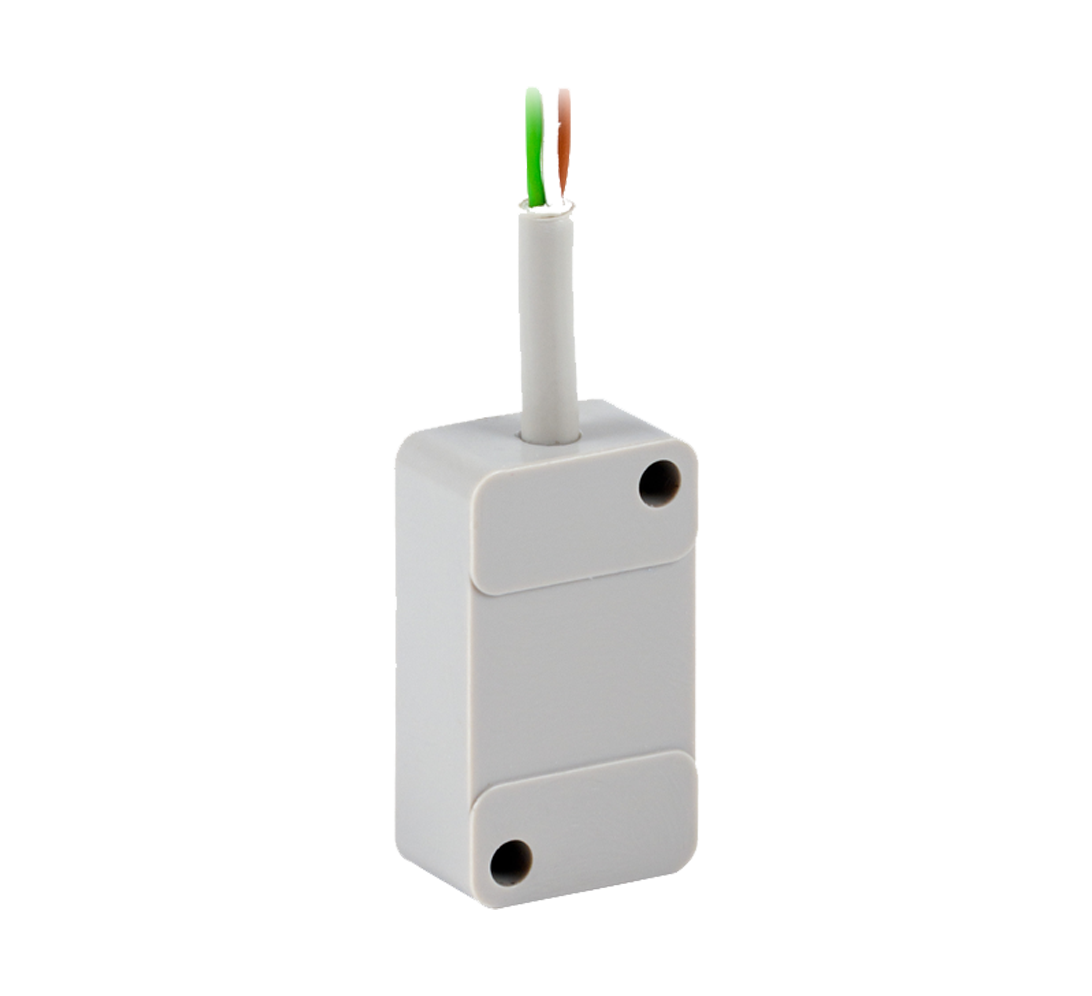

RS-V3 Series Rectangular limit switches area highly dependable, non-voltage dependant, hermetically sealed position sensors which consume zero power due to its volt-free dry contacts. They require the use of a magnetic target to operate and they are manufactured with a robust engineered resin housing in an industry standard V3 style that is suitable for mounting in a switch box.
Using the latest production methods and materials this product meets global certification requirements and its robust design makes it suitable for use in arduous and hazardous environments. Euroswitch products are also available with multi-approvals including combinations of the following global and regional certification standards;
ATEX / IECEx Ex d (Ex db); Ex ia; UL & CSA Cl I Div 1 & 2 and Cl2 Div 1 & 2; TR CU; INMETRO; KCs; FM; JIS; PESO; CCC; and NEPSI.
The RS series proximity switches meet the requirements of IEC 61508:2010 Routes 1H & 1S with Systematic Capability (SC3) as an element/subsystem, and are suitable for use in safety-related systems performing safety functions up to and including SIL 2 with HFT=0 (1oo1) and SIL 3 with HFT =1 (1oo2).
- Body Shape
- Rectangular V3
- Body Material
- 316L Stainless Steel
- Contact Arrangement
- SPCO / SPDT (Form C)
- Contact Material
- 28mm x 10mm x 16mm
- Max Current
- Conduit Entry
- Temperature Class (T Rating)
- Sensing Range with Magnet
- Up to the maximum in the magnet table
- Environmental Protection
- IP 66, 67 & 68 (24hrs at 30m)/ NEMA 4, 4X, 6 & 6P
- Safety Rating
- SIL 2 / SC3
All of our products are also available as Ordinary Location / General Industrial.
Please select your certification and protection concept for your specific requirement from the Part Number builder below
