FS-CYL-C Series Overview

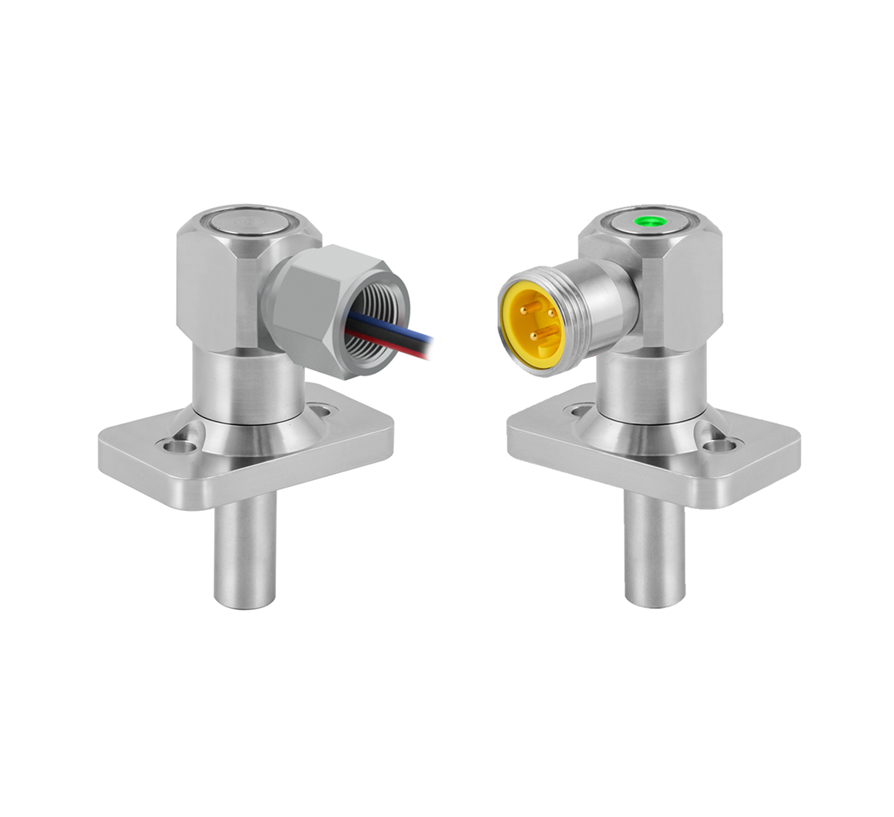

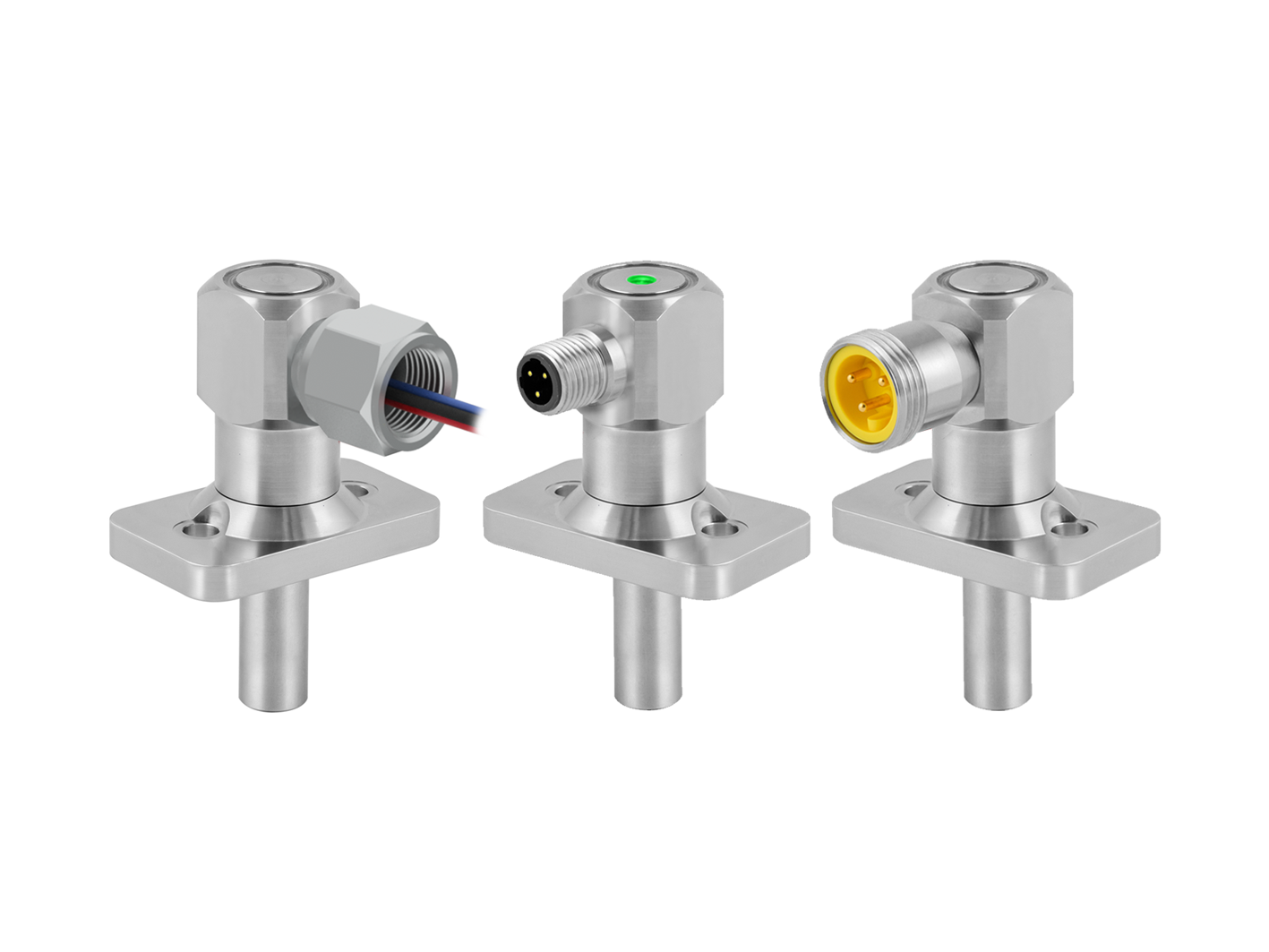

The FS-CYL-C Series is available for non-hazardous areas requiring a reliable proximity sensor for detecting end of stroke piston position in pneumatic and hydraulic cylinders, It is available in three standard probe lengths 1.025” (26.0mm), 1.25" (31.75mm) & 2.062" (52.38mm).
The sensing end face is rated for 3000psi / 207bar and mounting is via the two bolt flange and sealed with the Viton O-ring supplied. Models are available with LED indication and a variety of cable and connector options. The head is able to rotate 360° to allow for optimal positioning of the electrical connection.
- Housing Type
- 360° Rotatable Head (with bolts loose)
- Contact Arrangement
- SPCO / SPDT (Form C)
- Contact Material
- Palladium-Silver
- Max Switching Current
- 4A
- Environmental protection
- IP 66, 67 & 68 (24hrs at 30m)/ NEMA 4X & 6P
- Sensing Range with Magnet
- <12mm (0.47")
- Sensing Face Pressure Rating
- 2,000psi / 138 bar
- Actuation
- Ferrous Actuated (Magnet Optional)
- Repeatability
- Approx. 0.05mm (0.002")
- Response Time
- 8 ms
- Differential Hysteresis
- < 0.51mm (0.020") axial
Certification
Temp Rating
Compliance
Certificate No. (Click to download)
Safety Integrity Level (SIL)
IEC 61508:2010; SC3 ¦ SIL 2 with HFT=0 (1oo1) and SIL 3 with HFT =1 (1oo2)
