Proximity Switch - Ferrous
Explosion Proof & Intrinsically Safe Proximity/Limit Switches SPDT/SPCO
Documents to view/download
Series Overview

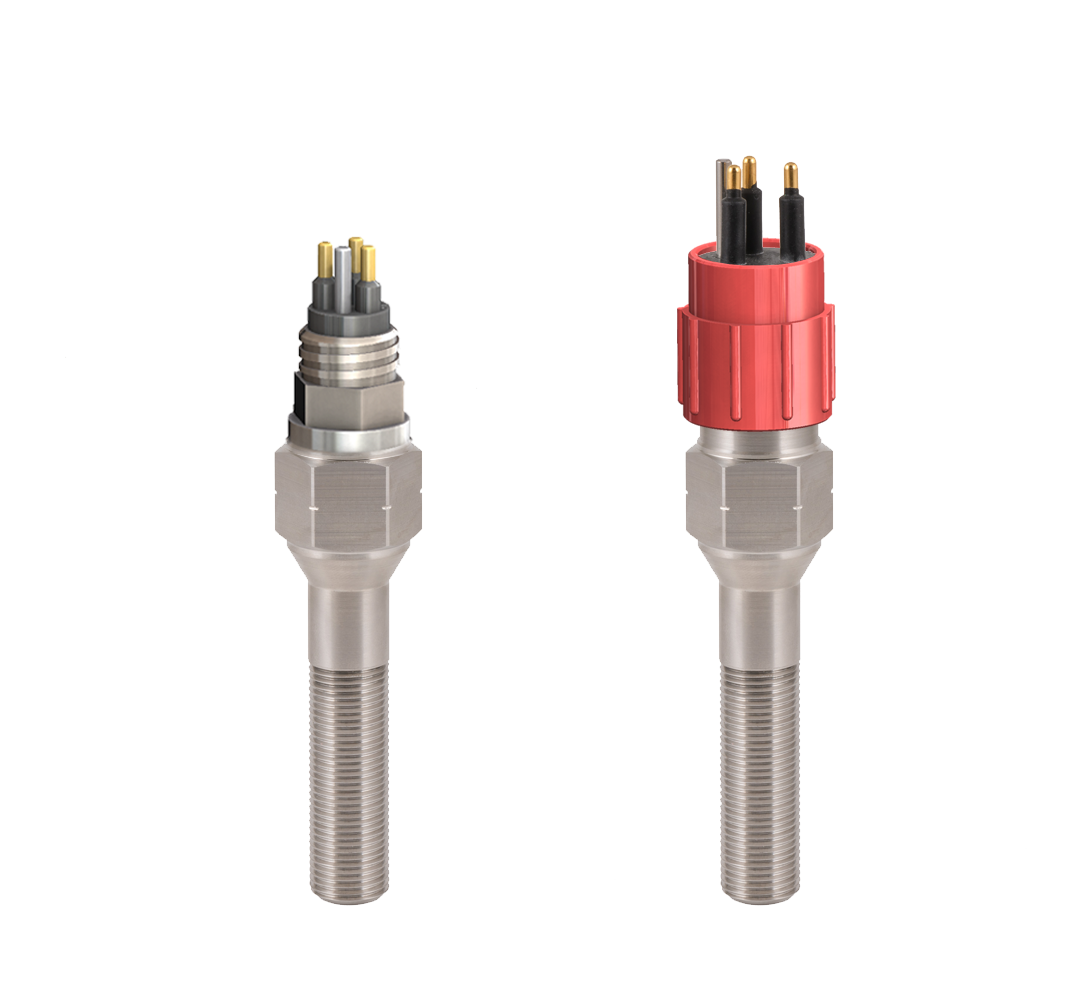

The FS-B Series Proximity Switch (5/8" UNF Thread) is highly versatile and can be used in a multitude of applications where a reliable signal is required. Utilising proven magnetic technology enables them to sense ferrous material, such as carbon steel or stainless steel (17/4 or 400 series) at up to 2.5mm (0.1"). Volt free SPCO/SPDT (Form C) contacts as standard with the ability to use as Normally Open or Normally Closed devices.
The FS-B Series is available either hardwired or with one of three wireable options (W, WL, WLR) which utilises our pioneering integrated junction box/connection head design. Euroswitch wireable proximity switches alleviate add on components and allow installation where space is at a premium.
The FS-B Series is covered by the following hazardous area certifications.
Explosion Proof: | IECEx & ATEX Ex d/db/tb (Zone 1 & Zone 21) ¦ UL/CSA (Class I & II, Div1 & Div2) |
Intrinsically Safe: | IECEx & ATEX Ex ia (Zone 0 & Zone 20) ¦ UL/CSA IS (Zone 0) |
Other Regional Approvals Include: | EAC/TRCU, INMETRO, KCs, CCOE/PESO, ECAS ex, NEPSI/CQST |
The FS-B series proximity switches meet the requirements of IEC 61508:2010 Routes 1H & 1S with Systematic Capability (SC3) as an element/subsystem, and are suitable for use in safety related systems performing safety functions up to and including SIL 2 with HFT=0 (1oo1) and SIL 3 with HFT =1 (1oo2).
- Body Shape
- Cylindrical
- Body Material
- 316L Stainless Steel
- Contact Arrangement
- SPCO / SPDT (Form C)
- Contact Material
- Palladium-Silver
- Max Current
- 4A
- Connection
- Connector
- Sensing Face Pressure Rating
- 2000-10000 psi / 138-690 bar / 1370-6895 msw
- Environmental Protection
- IP 66, 67 & 68 (24hrs at 30m)/ NEMA 4X & 6P
- Safety Rating
- SIL 2 / SC3
- Actuation
- Ferrous Actuated (Magnet Optional)
- Mounting Thread
- 5/8"-18 UNF (47.75mm / 1.88" long) c/w 2 x locknuts
- Sensing Range with Magnet
- <12mm (0.47")
- Range (ferrous target)
- 2.5mm|0.10"
- Repeatability
- Approx. 0.05mm (0.002")
- Response Time
- 8 ms
- Differential / Hysteresis
- < 0.51mm (0.020")
- Operating Temperature Range
- -40°C to +105°C / -40°F to +221°F
All of our products are also available as Ordinary Location / General Industrial.
Please select your certification and protection concept for your specific requirement from the Part Number builder below
Document | Language |
---|---|
Installation and Operating Instructions | English |
Installation and Operating Instructions | Spanish |
Installation and Operating Instructions | Italian |
Installation and Operating Instructions | German |
Installation and Operating Instructions | Russian |
Installation and Operating Instructions | Portuguese |
Installation and Operating Instructions | French |
Installation and Operating Instructions | Chinese |
