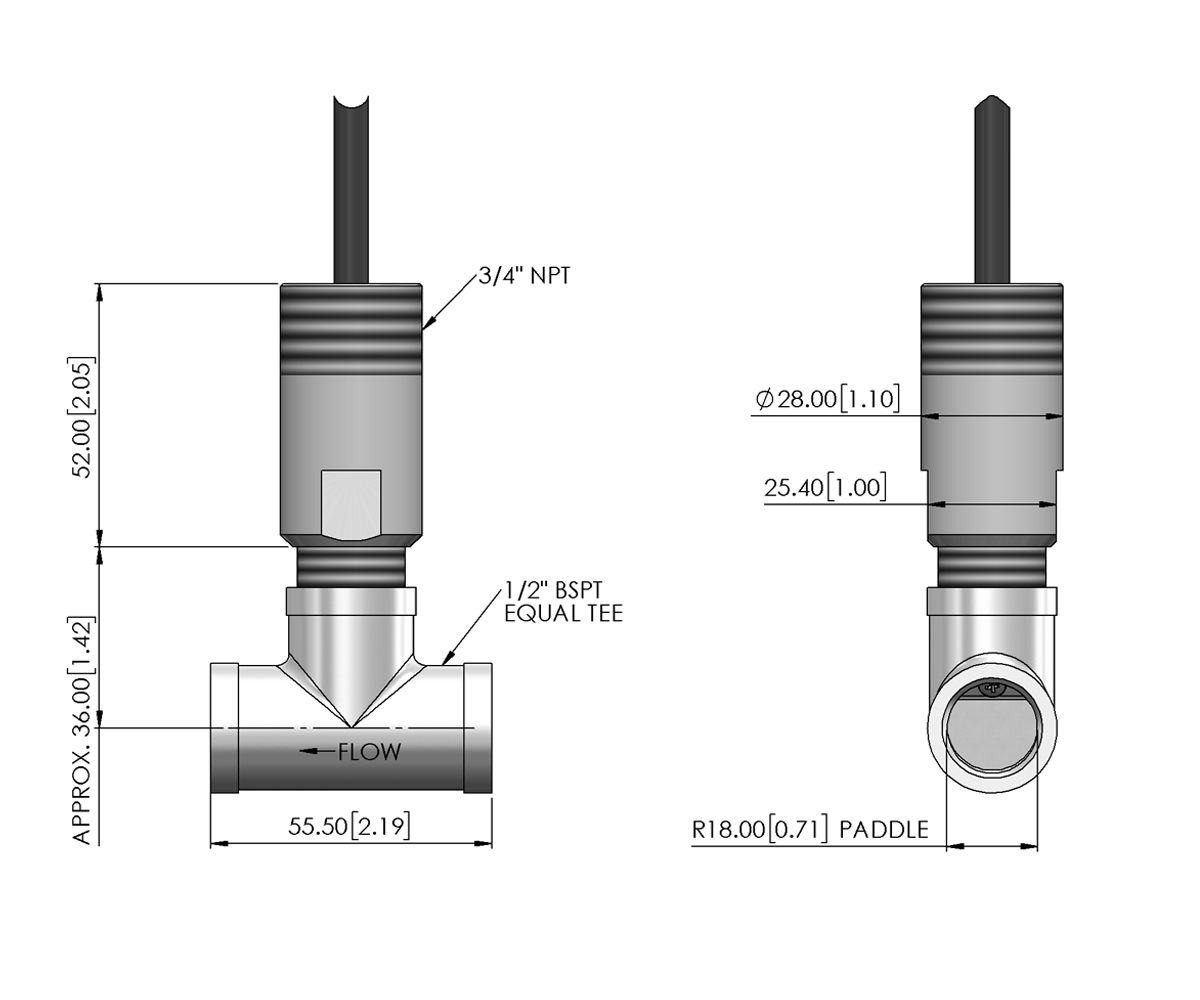

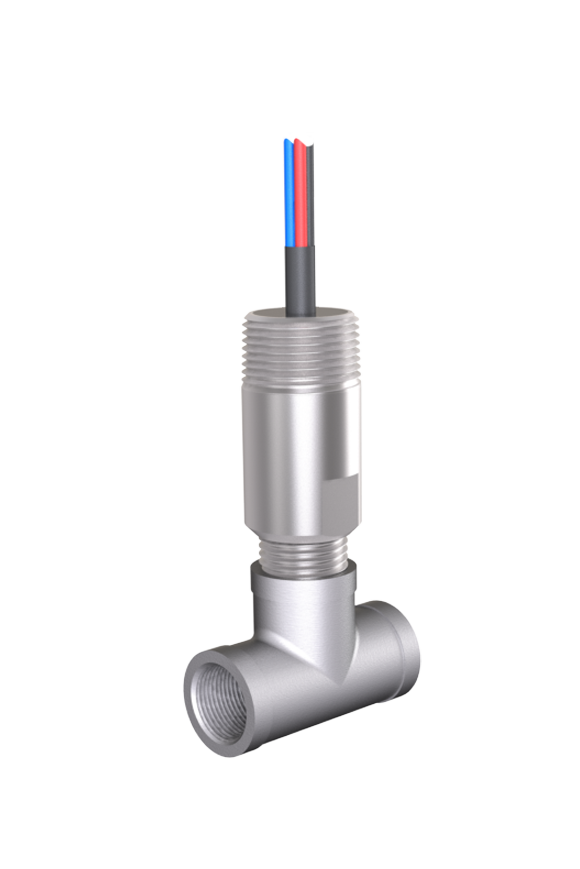

FL-A Series

FL
FL-A421L-1N-2-E

Certifications / Approvals

As per product features list.

Documents to view/download

  • Product Datasheet

Body Shape
Cylindrical
Body Material
316L Stainless Steel
Wetted Part Material
316L Stainless Steel
Conduit Entry
3/4" NPT-M
Connection
PVC Leads
Certification & Approvals
UL & CSA (Underwriters Laboratory & Canadian Standards Association)
Hazardous Location
Class I II III Div 1
Gas Group
Grps A B C D
Dust Group
Grps E F G
Temperature Class (T Rating)
T4A
Environmental Protection
IP 66, 67 & 68 (24hrs at 30m)/ NEMA 4X & 6P
Actuation (Rising flow)
<9.1 l/min (2.4 US GPM)*
Deactivation (Falling Flow)
~6.0 l/min (1.6 US GPM)*
Process Connection
1/2" NPT
Supplied with Tee
Supplied with 316 Stainless Steel equal Tee
Maximum Working Pressure
138bar / 2000psi
Maximum Flow Rate
60 L/min or 15 US GPM
*quoted with water at 20°C and in 1/2" NPT Tee

All of our products are also available as Ordinary Location / General Industrial.

Document Language

Alternative Versions Available

Feature Variation Related Product Page
