FL Range » FL-A Series
Flow Switch - UL & CSA
Flow Switch Certified for General Industrial Use
This Flow Switch has a 316L Stainless Steel housing with DPCO / DPDT (2x Form C), volt free Silver Alloy contacts. It has a maximum switching current of 4A and can be used for switching multiple voltages in AC or DC. Utilising proven dry contact switch technology allows them to be used across a wide temperature range whilst providing output signals suitable for PLC monitoring and/or driving beacons or sounders where the 24A in-rush capability ensures that the switch can safely handle any start-up current surge.

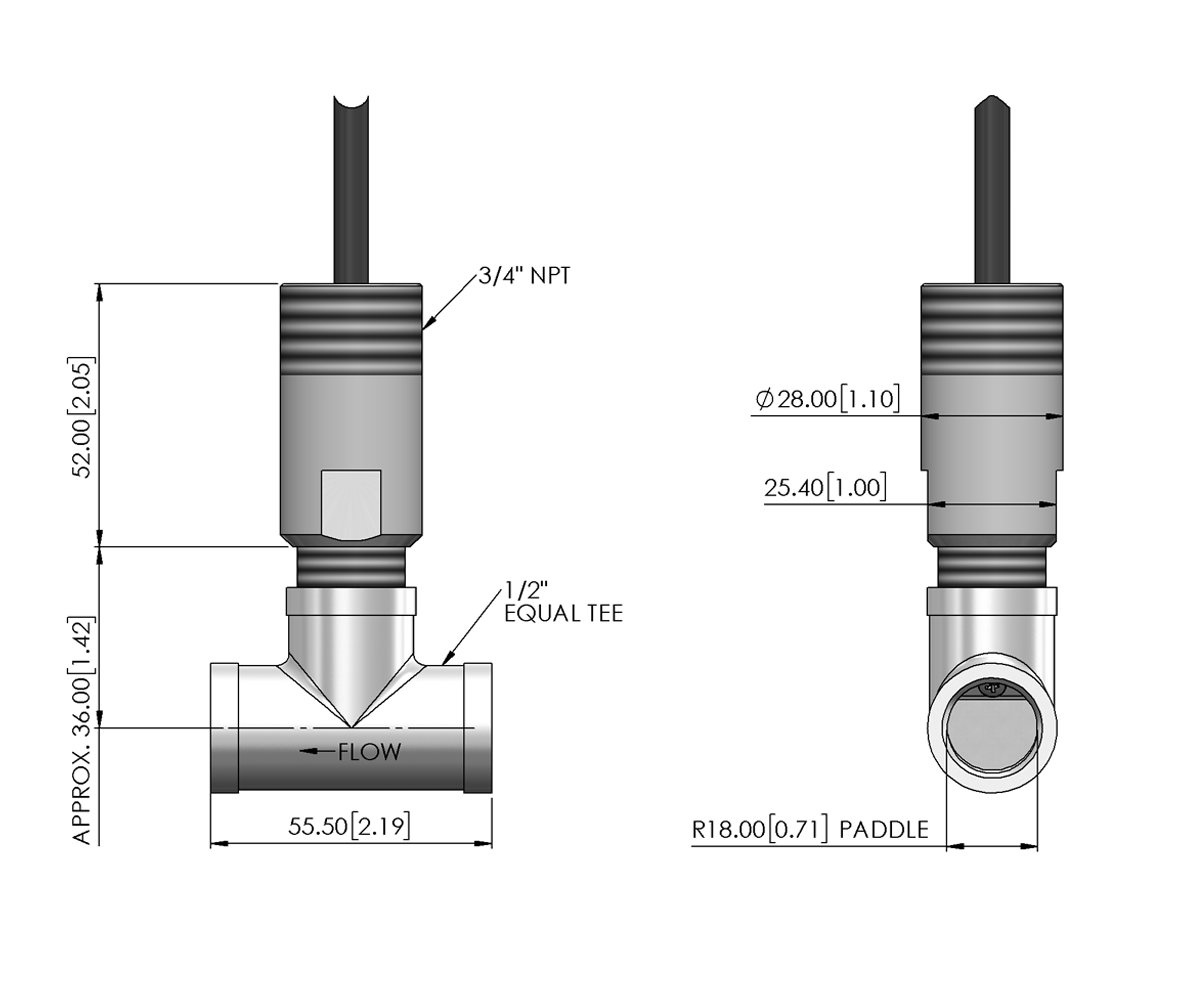

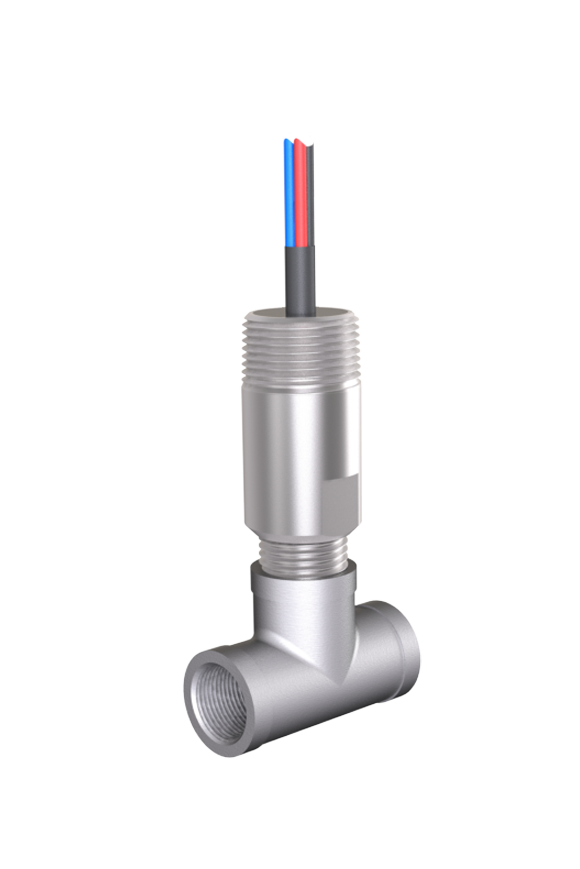

The FL-A Series flow switch is a robust paddle type design utilising stainless steel 316L wetted parts guaranteeing long life. Designed to be mounted in horizontal pipework this switch model is provided with a 1/2" BSPT equal tee ready for direct fitment into customer pipework.
FL Series are fully compatible with our battery powered Euroswitch Wireless Technology to enable transmission of condition monitoring and alarm signals in mesh networks and via IoT protocols such as SigFox in all applications including hazardous and explosion-proof environments.
Euroswitch products are also available with multi-approvals including combinations of the following global and regional certification standards;
| Explosion Proof: | IECEx & ATEX Ex d db tb (Zone 1 & 2 and Zone 21 & 22)
UL/CSA Class I, Class II and Class III, Division 1 & Division 2 (Cl1 Div1 ; Cl2 Div1 ; Cl1 Div 2 ; Cl2 Div2) |
| Intrinsically Safe: | IECEx & ATEX Ex ia (Zone 0 & Zone 20)
UL/CSA IS (Zone 0) |
| Other Regional Approvals Include: | INMETRO |
- Housing Type
- Cylindrical with Cable
- Housing Material
- 316L Stainless Steel
- Conduit Entry
- 3/4" NPT-M
- Electrical Connection
- PVC Leads
- Contact Arrangement
- DPCO / DPDT (2x Form C)
- Certification
- UL & CSA
- Hazardous Location
- n/a
- Gas Group
- n/a
- Dust Group
- n/a
- Temperature Class (T Rating)
- n/a
- Environmental protection
- IP 66, 67 & 68 (24hrs at 30m)/ NEMA 4X & 6P
- Wetted Part Material
- 316L Stainless Steel
- Actuation (Rising flow)
- <9.1 l/min (2.4 US GPM)*
- Deactivation (Falling Flow)
- ~6.0 l/min (1.6 US GPM)*
- Process Connection
- 1/2" BSPT
- Supplied with Tee
- Stainless Steel 316L Equal Tee
- Maximum Working Pressure
- 138bar / 2000psi
- Maximum Flow Rate
- 60 L/min or 15 US GPM
All of our products are also available as Ordinary Location / General Industrial.
