Proximity Switch - Ferrous

Proximity Switch - Ferrous
FS-X715

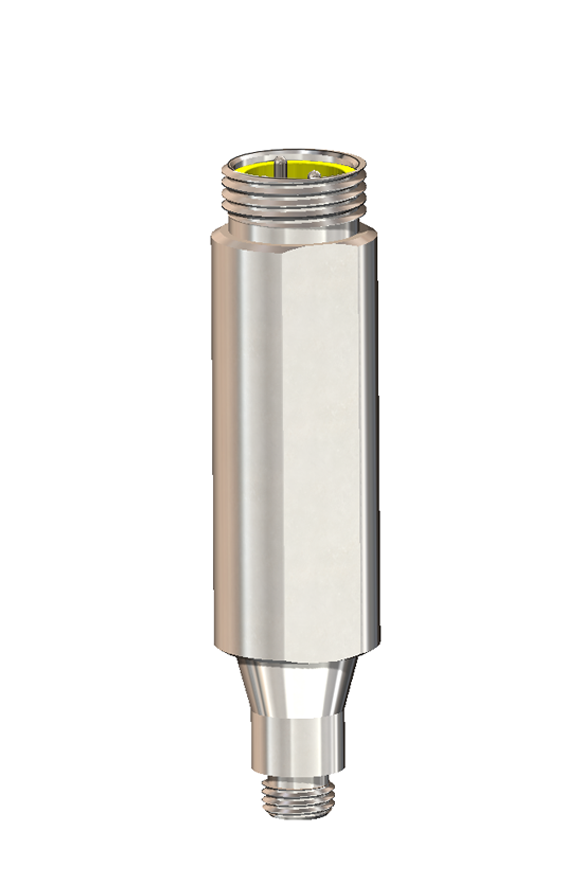

FS-X715 - 5 Pin Mini-Change Connector

Certifications / Approvals

Documents to view/download

  • Product Datasheet

Proximity Switch for UL & CSA Ordinary Location, General Purpose use

This Proximity Switch has a 316L Stainless Steel housing with Normally Open, volt free Palladium-Silver contacts. It has a maximum switching current of 4A and can be used for switching multiple voltages in AC or DC. These switches are able to sense ferrous material, such as carbon steel or stainless steel (17/4 or 400 series), through the end face and are reliable through millions of operations. Optional magnetic targets can be used to further increase sensing range.

Body Shape
Cylindrical
Body Material
316L Stainless Steel
Contact Arrangement
Normally Open (Form A)
Contact Material
Palladium-Silver

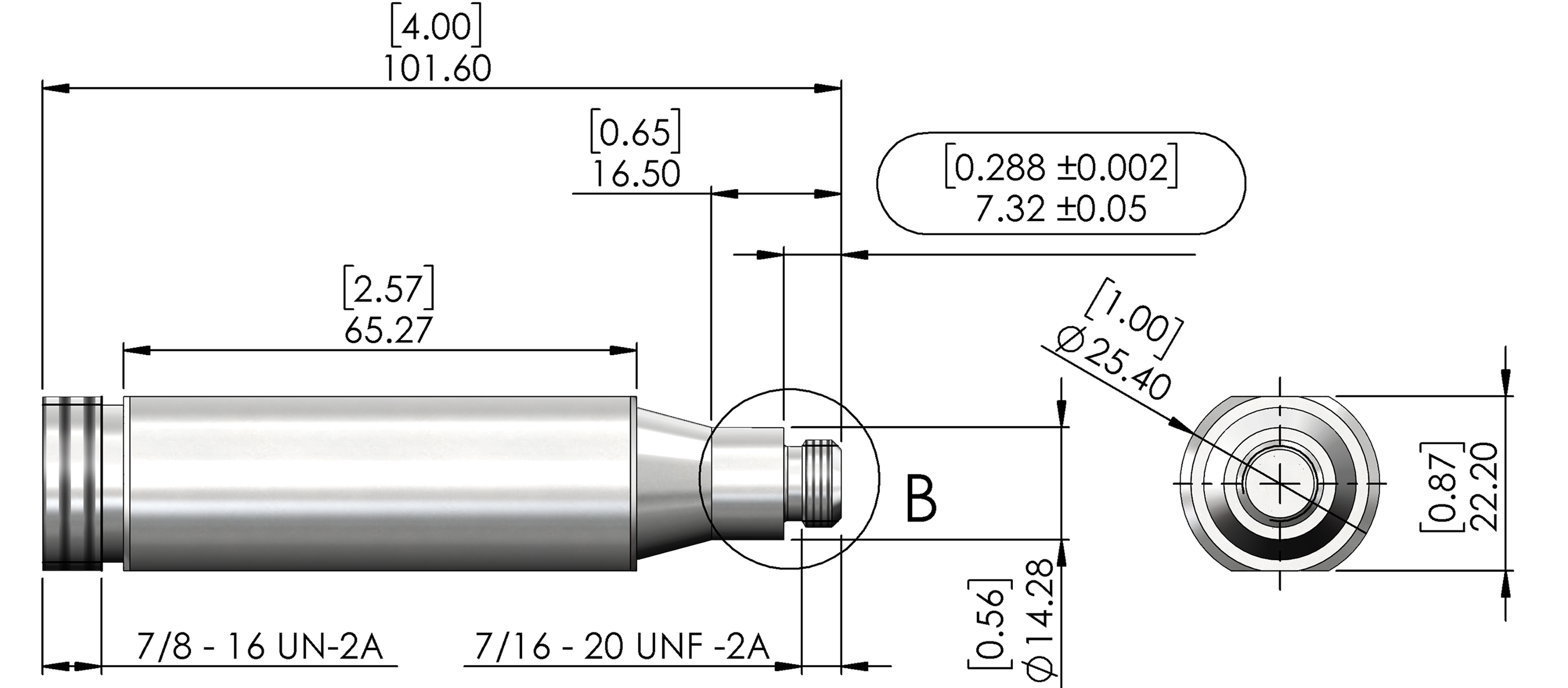

Mounting Thread
7/16”-20 UN -2A
Max Current
4A
Connection
Mini-Change Quick Disconnect 5 pin connector
Conduit Entry
n/a
Termination
Connector V3
Certification & Approvals
UL Listed (Underwriters Laboratory) & CSA (Canadian Standards Association) Ordinary Location
Hazardous Location
n/a
Gas Group
n/a
Dust Group
n/a
Temperature Class (T Rating)
n/a
Operating Temperature
-40°C to +100°C [-40°F to 212°F]

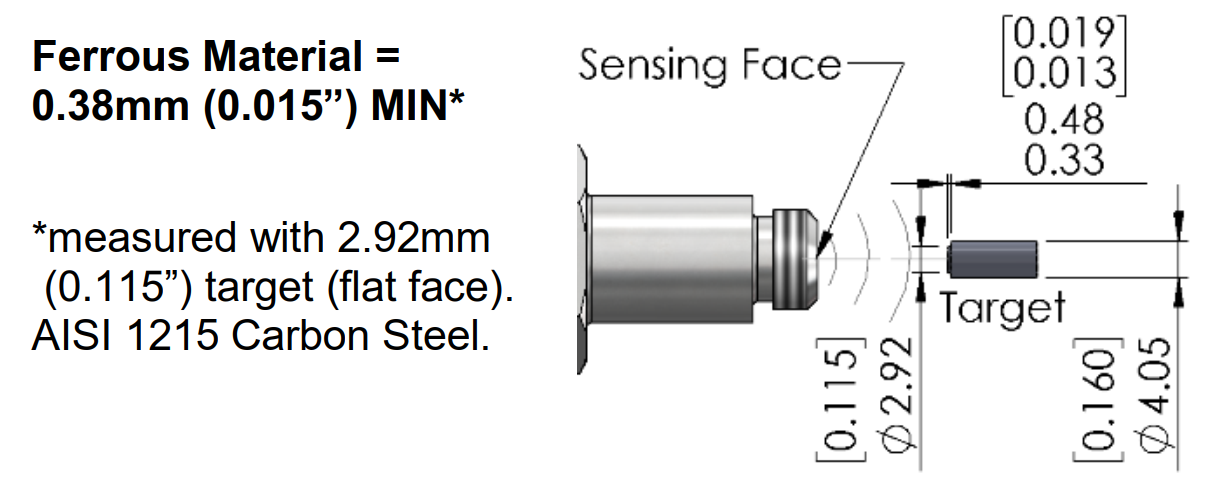

Sensing Range with Magnet
0.38mm MIN with 4.05dia ferrous piston
Sensing Face Pressure Rating
7500psi
Environmental Protection
IP 66 & 67 / NEMA 4X & 6P
Safety Rating
SIL 2 / SC3
Range (ferrous target)
2.5mm|0.10"
Repeatability
Approx. 0.05mm (0.002")
Response Time
8 ms
Differential / Hysteresis
< 0.51mm (0.020")
Certification
Temp Rating
Compliance
UL/CSA
UL 508, CSA C22.2 No. 14-13

All of our products are also available as Ordinary Location / General Industrial.

operating principals diagram
Document Language
Installation and Operating Instructions FS Series Proximity Switch - Installation and Operating Instructions English
Installation and Operating Instructions FS Series Proximity Switch - Installation and Operating Instructions Spanish
Installation and Operating Instructions FS Series Proximity Switch - Installation and Operating Instructions Italian
Installation and Operating Instructions FS Series Proximity Switch - Installation and Operating Instructions German
Installation and Operating Instructions FS Series Proximity Switch - Installation and Operating Instructions Russian
Installation and Operating Instructions FS Series Proximity Switch - Installation and Operating Instructions Portuguese
Installation and Operating Instructions FS Series Proximity Switch - Installation and Operating Instructions French
Installation and Operating Instructions FS Series Proximity Switch - Installation and Operating Instructions Chinese

Alternative Versions Available

Feature Variation Related Product Page
Termination Head WLR FS-B621-WLR
WL FS-B621-WL
W FS-B621-W
Alternative Conduit Entry M20 FS-B621-E-M20
