FS Range » FS-CYL-C Series
FS-CYL-C621-3SS-P1.025
UL Listed / Ordinary Location Proximity Switch
CYL-C for UL Listed / Ordinary Location - Standard Temperature

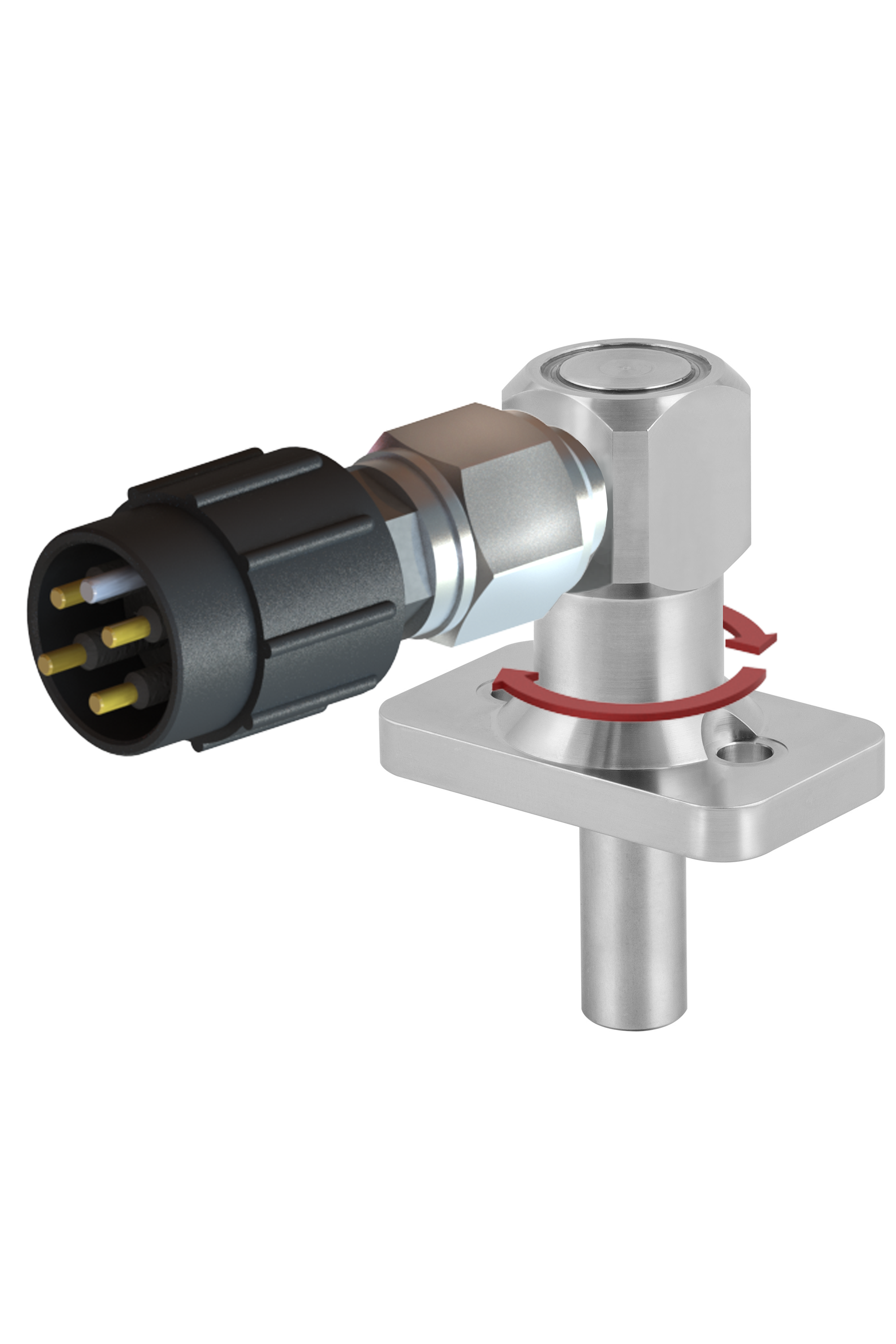

Our FS-CYL-C series switches are available for non-hazardous areas requiring a reliable proximity sensor for detecting end of stroke piston position in pneumatic and hydraulic cylinders. They are able to sense ferrous material, such as carbon or stainless steel (17/4 or 400 series) at up to 2.3mm (0.09") and are reliable through millions of operations. The sensing end face is rated for 3000psi / 207bar and mounting is via the two bolt flange and sealed with the Viton o-ring supplied. The head is able to rotate 360° to allow for optimal positioning of the electrical connection. This model has a 26.00mm [1.025"] long probe.
- Body Shape
- Flange Mount with Probe.
- Housing Type
- 360° Rotatable Head (with bolts loose)
- Body Material
- 316L Stainless Steel
- Probe Length
- 26.00mm [1.025"]
- Contact Form
- SPDT Form C
- Certification
- UL Listed / Ordinary Location
- Contact Material
- Palladium-Silver
- Connection
- 3-Pin Subsea Subconn Circular Series Connector
- Max Switching Current
- 4A
- Operating Temperature
- -40C to +100C
- Sensing Face Pressure Rating
- 3,000psi / 207 bar
- Environmental protection
- IP 66 & 67 / NEMA 4, 4X & 6
- Repeatability
- Approx. 0.05mm (0.002")
- Differential Hysteresis
- < 0.51mm (0.020")
- Included Accessories
- Viton O-ring + 1/4”-20 UNF x 5/8” Socket Head Cap Screws SS316 (x2)
- Sensing Range with Magnet
- <12mm (0.47")
Certification
Gas Group
Temp Rating
Compliance
Certificate No. (Click to download)
Safety Integrity Level (SIL)
n/a
n/a
IEC 61508:2010; SC3 ¦ SIL 2 with HFT=0 (1oo1) and SIL 3 with HFT =1 (1oo2)
All of our products are also available as Ordinary Location / General Industrial.
| Document | Language |
|---|---|
| Installation and Operating Instructions |  English |
| Installation and Operating Instructions | Spanish |
| Installation and Operating Instructions | Italian |
| Installation and Operating Instructions | German |
| Installation and Operating Instructions | Russian |
| Installation and Operating Instructions | Portuguese |
