Junction Boxes » JB-1 Series

Junction Box

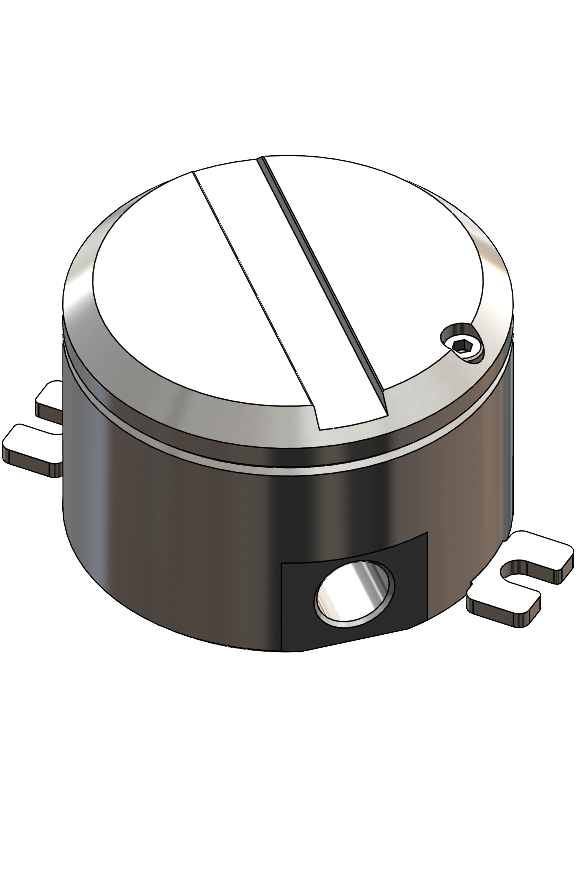

JB-1Z2-B

Certifications / Approvals

Documents to view/download

Product Datasheet

Body Shape: Circular ø75mm
Body Material: 316L Stainless Steel
Max Current: 5A
Connection: 1 x M20 Conduit Entries
Conduit Entry: M20 x 1.5
Certification & Approvals: EAC/TRCU Ex d/db/tb
Hazardous Location: Zone 1, 2, 21 and 22
Gas Group: IIC
Dust Group: IIIC
Temperature Class (T Rating): T4 / T5 / T6
Environmental Protection: IP 66 & 67
Mounting: Supplied with brackets to allow flush mounting. To suit M5 Socket Head Cap Screws (no supplied)

Certification

Gas Group

Temp Rating

Compliance

Certificate No. (Click to download)

ATEX

IIC / IIIC

T4 / T6

EN IEC 60079-0: 2018, EN 60079-1: 2014, EN 60079-31: 2014

Baseefa14ATEX0120X

IECEx

IIC / IIIC

T4 / T6

IEC 60079-0:2017, IEC 60079-1:2014-06, IEC 60079-31:2013

IECExBAS14.0059X

All of our products are also available as Ordinary Location / General Industrial.
