Junction Boxes » JB-2 Series

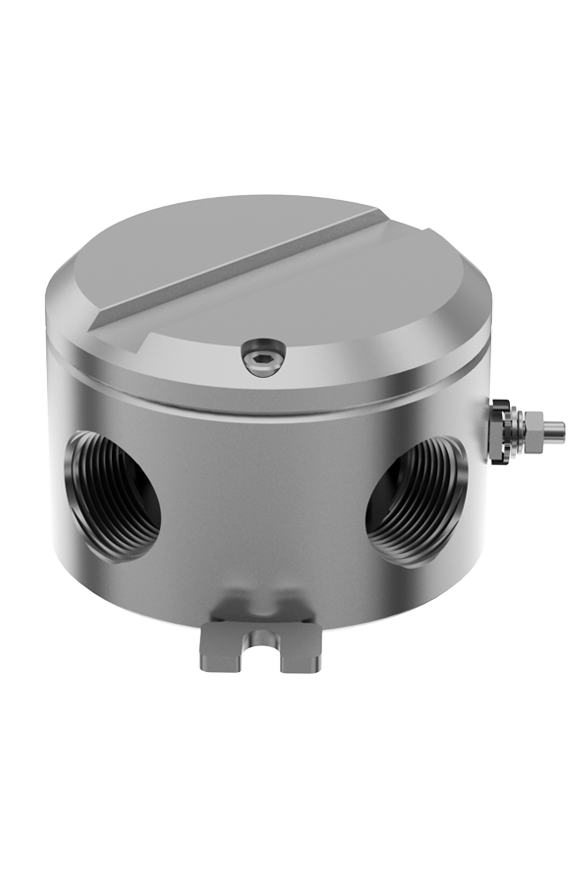

Junction Box
JB-222-CXY

Certifications / Approvals

Documents to view/download

  • Product Datasheet

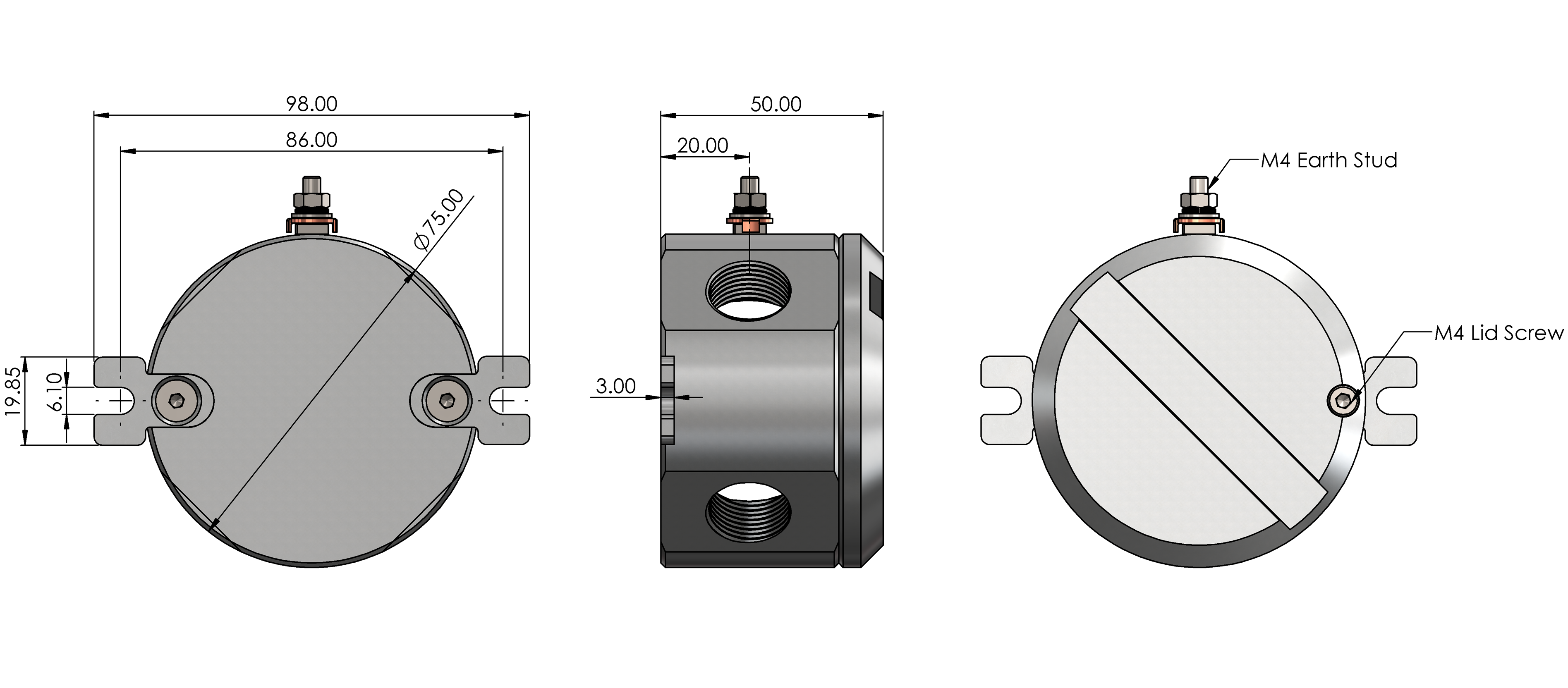

Body Shape
Circular ø75mm
Body Material
316L Stainless Steel
Max Current
5A
Connection
4 x 1/2" NPT Conduit Entries
Conduit Entry
1/2" NPT
Certification & Approvals
IECEx, ATEX, UKEx Ex ia
Hazardous Location
Zones 0 and 20
Gas Group
IIC
Dust Group
IIIC
Temperature Class (T Rating)
T4 / T5 / T6
Environmental Protection
IP 66 & 67
Mounting
Supplied with brackets to allow flush mounting. To suit M5 Socket Head Cap Screws (no supplied)
Certification
Gas Group
Temp Rating
Compliance
Certificate No. (Click to download)
ATEX
IIC / IIIC
T4 / T6
EN IEC 60079-0: 2018, EN 60079-1: 2014, EN 60079-31: 2014
Baseefa14ATEX0120X
IECEx
IIC / IIIC
T4 / T6
IEC 60079-0:2017, IEC 60079-1:2014-06, IEC 60079-31:2013
IECExBAS14.0059X

All of our products are also available as Ordinary Location / General Industrial.
