RS-U Series

RS

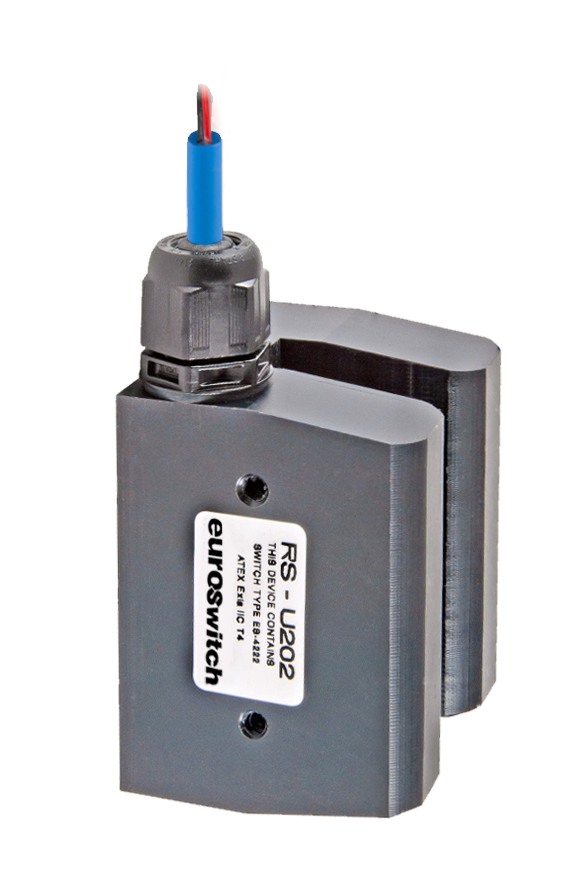

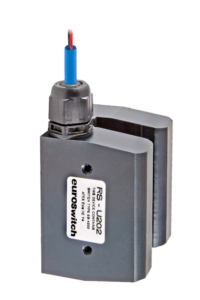

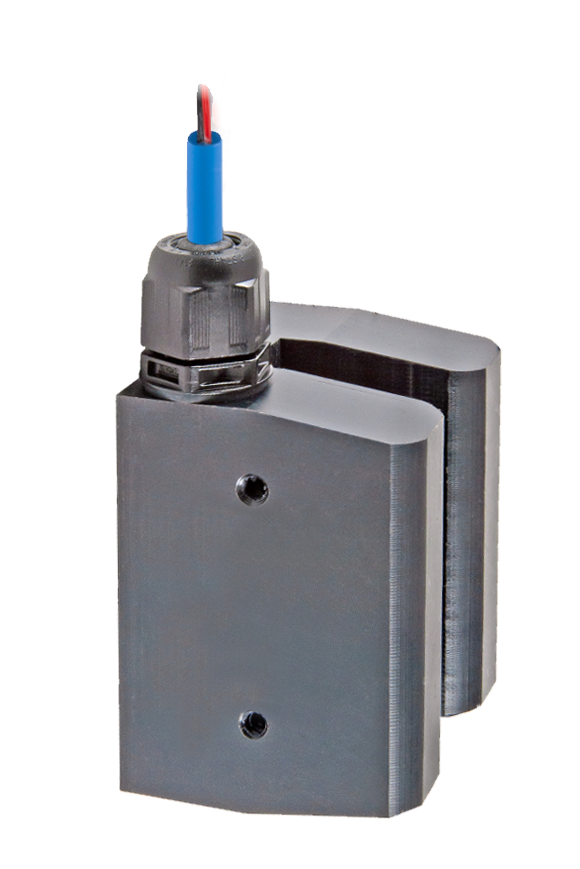

RS-U202

Certifications / Approvals

As per product features list.

Documents to view/download

  • Product Datasheet

Body Shape
Vane Switch
Body Material
Glass Filled Nylon
Contact Material
Rhodium (Tungsten optional)
Dimensions
85mm x 70mm x 60mm
Max Current
830mA
Connection
Polyolefin Cable (Blue)
Conduit Entry
n/a
Certification & Approvals
IECEx, ATEX, UKEx Ex ia
Hazardous Location
Zones 0 and 20
Gas Group
IIC
Dust Group
IIIC
Temperature Class (T Rating)
T4 / T6
Sensing Range with Magnet
Up to the maximum in the magnet table
Environmental Protection
IP 66, 67 & 68 (24hrs at 30m)/ NEMA 4X & 6P
Safety Rating
SIL 2 / SC3

All of our products are also available as Ordinary Location / General Industrial.
