M-VIP-M
M-VIP Rotary Valve Position Indication Kit
Multi-Voltage, Volt Free Contacts | ATEX Zone 1 EEx mb T6
Valve Position Switch for Rotary Valve Position Monitoring,
IP68/IP66 Protection with Valve Open and Closed outputs. Certified for use in ATEX Zone 1 Hazardous Area applications.
This Valve Position Switch complete with visual indication puck is designed to fit ¼ turn Namur actuators of all sizes. The housing is made from PBT Engineered resin and contains 2 x Normally Open (SPST) Contacts with a maximum switching capacity of 1.6A at 24V DC. These volt free contacts can be used for switching multiple voltages in AC or DC.
- Body Material
- Engineered Resin
- Contact Arrangement
- 2 x Normally Open (FormA)
- Contact Material
- Rhodium

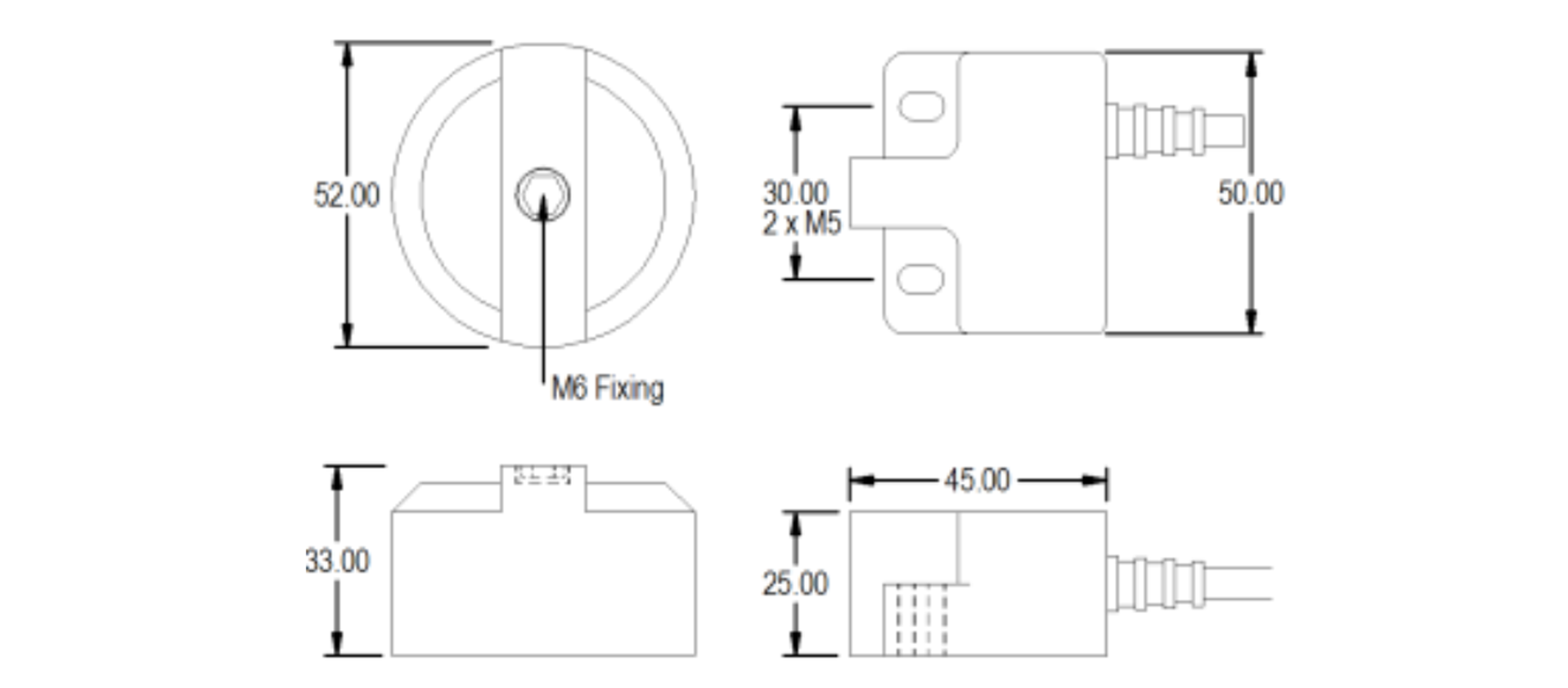

- Dimensions
- 50 x 45 x 25mm
- Max Current
- 1.6A
- Connection
- PVC Cable
- Termination
- Cabled
- Certification & Approvals
- ATEX
- Hazardous Location
- Zone 1 EEx mb
- Gas Group
- IIC
- Temperature Class (T Rating)
- T6
- Operating Temperature
- -20°C to +50°C / -4°F to +122°F
- Sensing Range with Magnet
- Up to the maximum in the magnet table
- Environmental Protection
- IP 66, 67 & 68
- Safety Rating
- SIL 2 / SC3
- Actuation
- Magnetically Actuated
Certification
Gas Group
Temp Rating
Compliance
ATEX
All of our products are also available as Ordinary Location / General Industrial.
