Proximity Switch - Ferrous » FS-B Series
Submersible Proximity Switch Rated for 5,000 psi / 345 Bar / 3447 msw
Certifications / Approvals
| Magnet Part No. | MA-1S | MA-4S | MA-7S | MA-8S |
|---|---|---|---|---|
| Sensing Range in mm (") | 3.3 (0.13) | 7.3 (0.29) | 11.3 (0.44) | 7.3 (0.29) |
| Magnet Datasheets |  | | | |
Subsea Proximity Switch for General Industrial use Rated for 5,000 psi / 345 Bar / 3447 msw

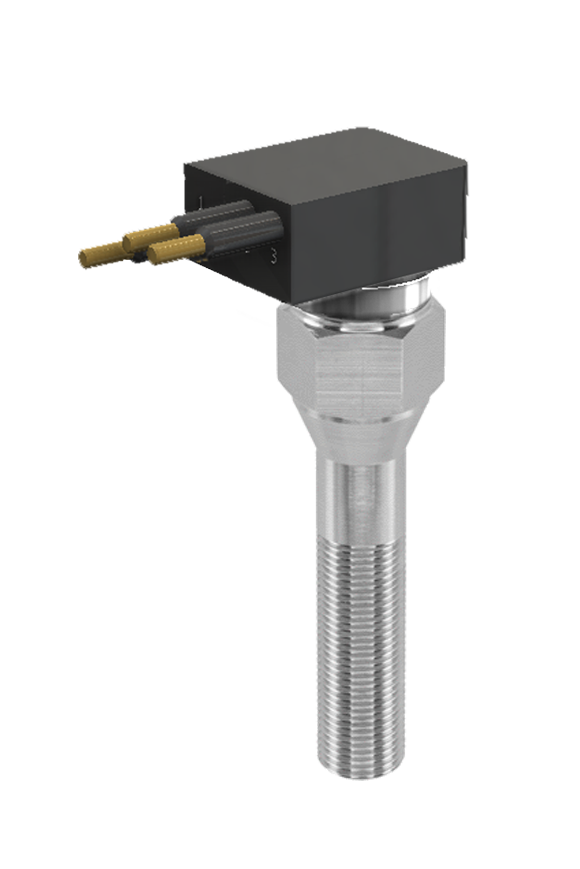

This subsea Proximity Switch has a 316L Stainless Steel Cylindrical housing with SPCO / SPDT (Form C) , volt free Palladium-Silver contacts. It has a maximum switching current of 4A and can be used for switching multiple voltages in AC or DC. These switches are able to sense ferrous material, such as carbon steel or stainless steel (17/4 or 400 series), through the end face at up to 1.8mm|0.07" and are reliable through millions of operations. Optional magnetic targets can be used to further increase sensing range. Suitable for use in the design of safety functions up to SIL2 or SIL3. Using the latest production methods and materials this product meets global certification requirements and its robust design makes it suitable for use in arduous and hazardous environments. Euroswitch products are also available with multi-approvals including combinations of the following global and regional certification standards; ATEX / IECEx Ex d (Ex db); Ex ia; UL & CSA Cl I Div 1 & 2 and Cl2 Div 1 & 2; EAC / TRCU; INMETRO; KCs; CCOE / PESO; ECAS ex; FM; JIS and NEPSI/CQST. Please contact us for more information.
- Body Shape
- Cylindrical
- Body Material
- 316L Stainless Steel
- Contact Arrangement
- SPCO / SPDT (Form C)
- Contact Material
- Palladium-Silver
- Mounting Thread
- 5/8"-18 UNF (47.75mm / 1.88" long) c/w 2 x locknuts
- Max Current
- 4A
- Connection
- PVC Cable
- Conduit Entry
- No Conduit Entry
- Termination
- Subsea
- Certification & Approvals
- UL Listed (Underwriters Laboratory) & CSA (Canadian Standards Association) Ordinary Location
- Hazardous Location
- n/a
- Gas Group
- n/a
- Dust Group
- n/a
- Temperature Class (T Rating)
- n/a
- Operating Temperature
- -40°C to +100°C / -40°F to +212°F
- Sensing Range with Magnet
- <12mm (0.47")
- Sensing Face Pressure Rating
- 5,000 psi / 345 Bar / 3447 msw
- Environmental Protection
- IP 68 (Continuous Submersion)
- Safety Rating
- SIL 2 / SC3
- Range (ferrous target)
- 1.8mm|0.07"
- Repeatability
- Approx. 0.05mm (0.002")
- Response Time
- 8 ms
- Differential / Hysteresis
- < 0.51mm (0.020")
All of our products are also available as Ordinary Location / General Industrial.
