Nuclear Proximity Switch - Nuclear Qualified - Radiation Resistant - High Temperature - Containment LOCA

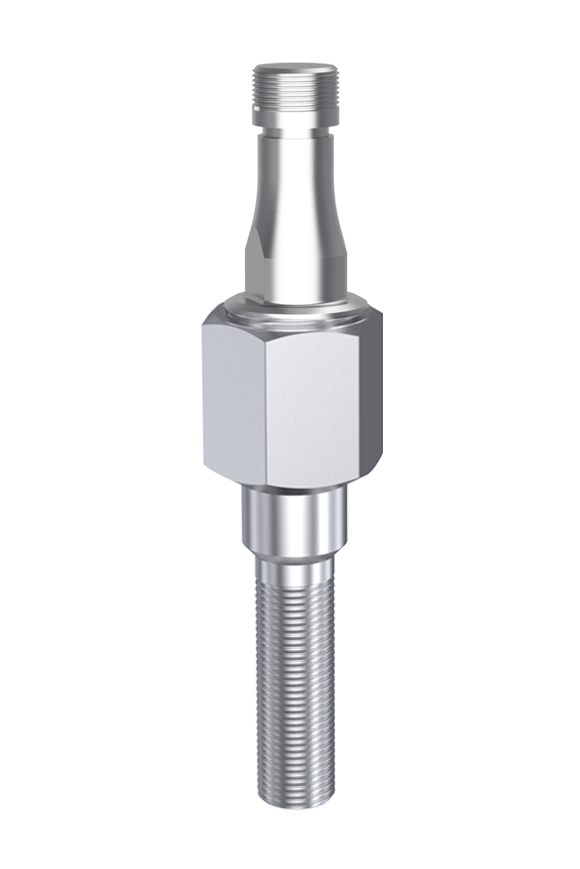

This nuclear proximity switch is manufactured with a Stainless steel 316L housing, and is provided with Mirion 4 pin Connector for use in the harshest nuclear environments occurring inside containment under LOCA accident conditions.

It exceeds Global Environmental Non-LOCA and Post Fukushima Seismic requirements at 10G RIM, and is capable of operating between -40°C and 204°C with allowable excursion peak to 260°C /500°F maximum temperature.

Being a non-contact proximity sensor it requires the use of EuroSwitch Nuclear Target Magnetic Actuators to operate reliably. Once set, it does not wear or need readjustment during its life time in numerous applications around the Nuclear Power Plant.

It has volt free, silver-palladium contacts in SPCO / SPDT (Form C) arrangement, and is capable of switching up to 4A at AC or DC voltages from 6V up to 240V, and is reliable through millions of operations.

Suitable for use in the design of safety functions up to SIL3, these proximity switches meet the requirements of IEC 61508:2010 Routes 1H & 1S with Systematic Capability (SC3) as an element/subsystem suitable for use in safety related systems performing safety functions up to and including SIL 3 with HFT =1 (1oo2).
