FS Range » FS-CYL-C Series

Proximity Switch - Ferrous

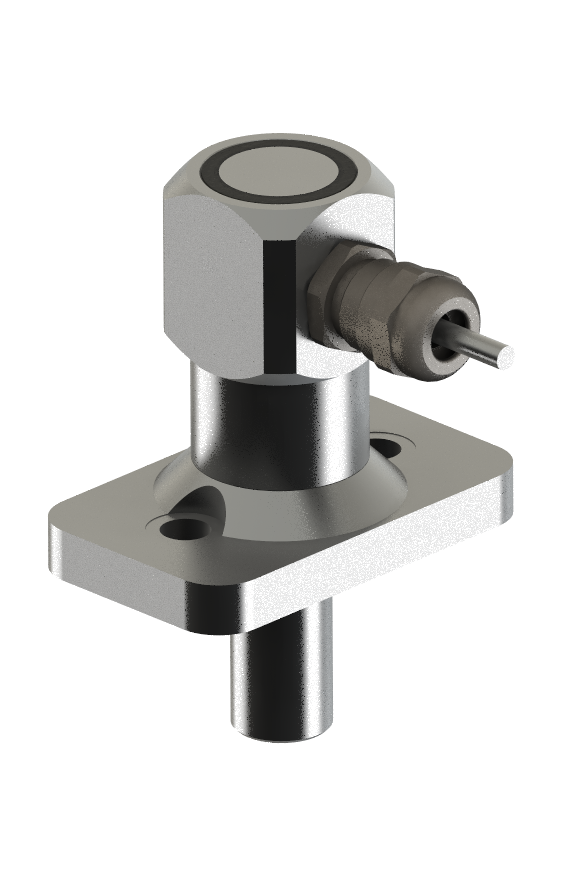

FS-CYL-C124L-P1.025(X519)

Magnet Part No.	MA-1S	MA-4S	MA-7S	MA-8S
Sensing Range in mm (")	3.5 (0.14")	7.5 (0.29")	11.5 (0.45")	7.5 (0.29")
Magnet Datasheets

Documents to view/download

Product Datasheet

CAD File

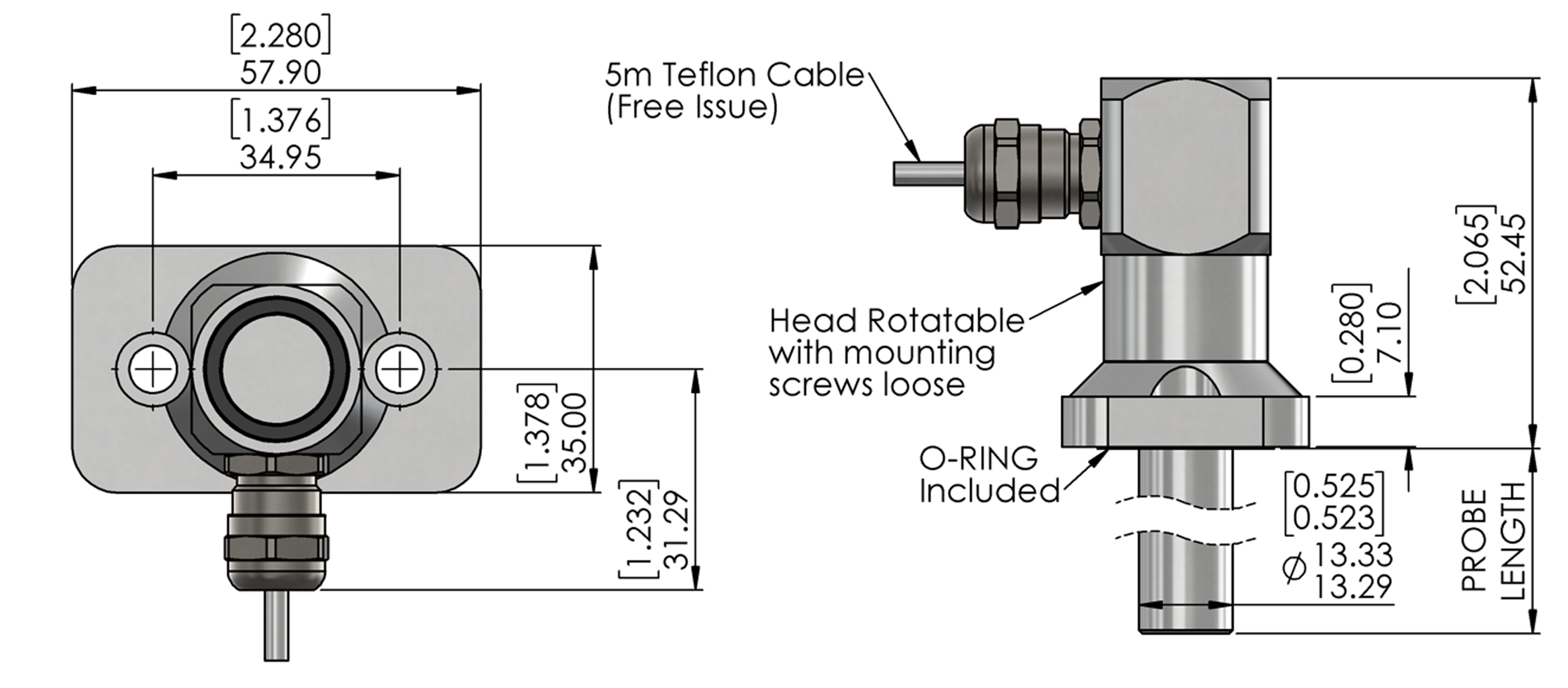

Housing Type: 360° Rotatable Head (with bolts loose)
Housing Material: 316L Stainless Steel
Contact Material: Palladium-Silver
Electrical Connection: PTFE/Teflon Leads
Certification: General Industrial
Hazardous Location: n/a
Gas Group: n/a
Dust Group: n/a
Probe Length: 26.00mm [1.025"]
Temperature Class (T Rating): n/a
Operating Temperature: -40C to +150C
Sensing Range with Magnet: <12mm (0.47")
Sensing Face Pressure Rating: 2,000psi / 138 bar
Environmental protection: IP 66, 67 & 68 (24hrs at 30m)/ NEMA 4X & 6P
Actuation: Ferrous Actuated (Magnet Optional)
Repeatability: Approx. 0.05mm (0.002")
Response Time: 8 ms
Differential Hysteresis: < 0.51mm (0.020") axial

Certification

Compliance

Certificate No. (Click to download)

Safety Integrity Level (SIL)

IEC 61508:2010; SC3 ¦ SIL 2 with HFT=0 (1oo1) and SIL 3 with HFT =1 (1oo2)

General Industrial

n/a

All of our products are also available as Ordinary Location / General Industrial.

Document	Language
Installation and Operating Instructions	English
Installation and Operating Instructions	Spanish
Installation and Operating Instructions	Italian
Installation and Operating Instructions	German
Installation and Operating Instructions	Russian
Installation and Operating Instructions	Portuguese
Installation and Operating Instructions	French
Installation and Operating Instructions	Chinese
