Proximity Switch - Ferrous » FS-GI Series
Proximity Switch - UL & CSA Class I II III Div 2, Zone 2 Grps Grps A B C D / Grps F G T6 - SPCO/SPDT - 316L Stainless Steel
Certifications / Approvals
Proximity Switch Certified for UL & CSA Class I II III Div 2, Zone 2 Groups Grps A B C D / Grps F G T6 Rated for use in Gas & Dust Class I II III Div 2
This Proximity Switch has a 316L Stainless Steel Cylindrical with LED Indication housing with SPCO / SPDT (Form C) , volt free Palladium-Silver contacts. It has a maximum switching current of 250mA and can be used for switching multiple voltages in AC or DC. These switches are able to sense ferrous material, such as carbon steel or stainless steel (17/4 or 400 series), through the end face at up to 2.5mm|0.10" and are reliable through millions of operations. Optional magnetic targets can be used to further increase sensing range. Using the latest production methods and materials this product meets global certification requirements and its robust design makes it suitable for use in arduous and hazardous environments. Euroswitch products are also available with multi-approvals including combinations of the following global and regional certification standards; ATEX / IECEx Ex d (Ex db); Ex ia; UL & CSA Cl I Div 1 & 2 and Cl2 Div 1 & 2; EAC / TRCU; INMETRO; KCs; CCOE / PESO; ECAS ex; FM; JIS and NEPSI/CQST. Suitable for use in the design of safety functions up to SIL2 or SIL3, these proximity switches meet the requirements of IEC 61508:2010 Routes 1H & 1S with Systematic Capability (SC3) as an element/subsystem suitable for use in safety related systems performing safety functions up to and including SIL 2 with HFT=0 (1oo1) and SIL 3 with HFT =1 (1oo2).
- Body Shape
- Cylindrical with LED Indication
- Body Material
- 316L Stainless Steel
- Contact Arrangement
- SPCO / SPDT (Form C)
- Contact Material
- Palladium-Silver

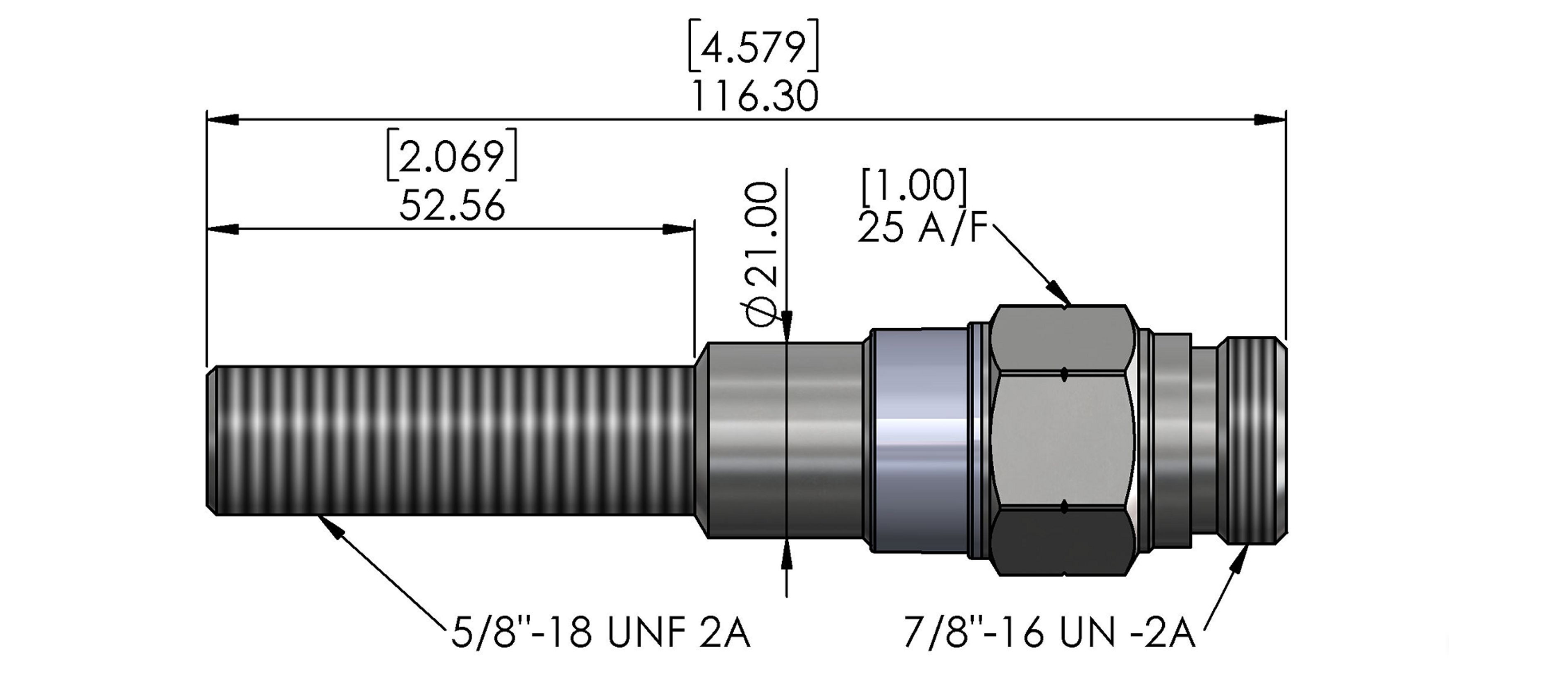

- Mounting Thread
- 5/8"-18 UNF (52.56 mm / 2.07" long) c/w 2 x locknuts
- Max Current
- 250mA
- Connection
- Micro-Change Quick Disconnect 4 pin connector
- Conduit Entry
- n/a
- Termination
- Connector V2
- Certification & Approvals
- UL & CSA (Underwriters Laboratory & Canadian Standards Association)
- Hazardous Location
- Class I II III Div 2
- Gas Group
- Grps A B C D
- Dust Group
- Grps F G
- Temperature Class (T Rating)
- T6
- Operating Temperature
- -40°C to +60°C / -40°F to +140°F
- Sensing Range with Magnet
- <12mm (0.47")
- Sensing Face Pressure Rating
- 2000psi / 138 bar
- Environmental Protection
- IP 66, 67 & 68 / NEMA 4X & 6P
- Safety Rating
- SIL 2 / SC3
- Range (ferrous target)
- 2.5mm|0.10"
- Repeatability
- Approx. 0.05mm (0.002")
- Response Time
- 8 ms
- Differential / Hysteresis
- < 0.51mm (0.020")
All of our products are also available as Ordinary Location / General Industrial.
