Proximity Switch - Ferrous » FS-K-D Series
General Industrial Proximity Switch - Multi Voltage AC/DC - DPDT/DPCO - SIL 3 Certified - - 316L Stainless Steel
Certifications / Approvals
As per product features list.
Proximity Switch for General Industrial use

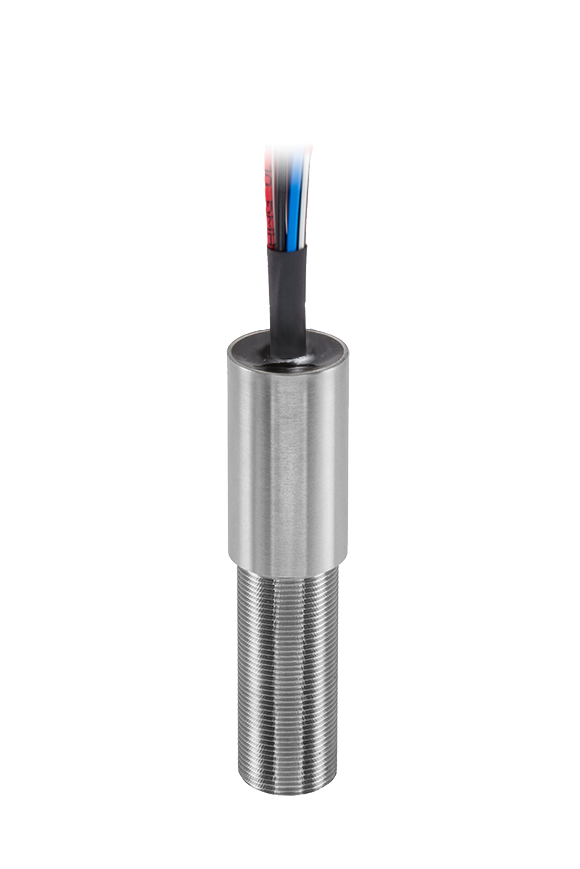

This Proximity Switch has a 316L Stainless Steel Cylindrical housing with DPCO / DPDT (2x Form C) , volt free Palladium-Silver contacts. It has a maximum switching current of 3A and can be used for switching multiple voltages in AC or DC. These switches are able to sense ferrous material, such as carbon steel or stainless steel (17/4 or 400 series), through the end face at up to 2.3mm|0.09" and are reliable through millions of operations. Optional magnetic targets can be used to further increase sensing range. Using the latest production methods and materials this product meets global certification requirements and its robust design makes it suitable for use in arduous and hazardous environments. Euroswitch products are also available with multi-approvals including combinations of the following global and regional certification standards; ATEX / IECEx Ex d (Ex db); Ex ia; UL & CSA Cl I Div 1 & 2 and Cl2 Div 1 & 2; EAC / TRCU; INMETRO; KCs; CCOE / PESO; ECAS ex; FM; JIS and NEPSI/CQST. Suitable for use in the design of safety functions up to SIL2 or SIL3, these proximity switches meet the requirements of IEC 61508:2010 Routes 1H & 1S with Systematic Capability (SC3) as an element/subsystem suitable for use in safety related systems performing safety functions up to and including SIL 2 with HFT=0 (1oo1) and SIL 3 with HFT =1 (1oo2).
- Body Shape
- Cylindrical
- Body Material
- 316L Stainless Steel
- Disposizione contatti
- DPCO / DPDT (2x Form C)
- Contact Material
- Palladium-Silver
- Mounting Thread
- M18x1.0 (44.50mm / 1.75" long) c/w 2 x locknuts
- Max Current
- 3A
- Connection
- PVC Leads
- Conduit Entry
- No Conduit Entry
- Terminazione
- Lead wires
- Certification & Approvals
- n/a
- Hazardous Location
- n/a
- Gas Group
- n/a
- Dust Group
- n/a
- Temperature Class (T Rating)
- n/a
- Temperatura di esercizio
- -20°C to +80°C / -4°F to +176°F
- Sensing Range with Magnet
- <12mm (0.47")
- Sensing Face Pressure Rating
- 2000psi / 138 bar
- Environmental Protection
- IP 66, 67 & 68 (24hrs at 30m)/ NEMA 4X & 6P
- Safety Rating
- SIL 3 / SC3
- Range (ferrous target)
- 2.3mm|0.09"
- Repeatability
- Approx. 0.05mm (0.002")
- Response Time
- 8 ms
- Differential / Hysteresis
- < 0.51mm (0.020")
All of our products are also available as Ordinary Location / General Industrial.
