Valve Position Switch for Rotatary Valve Position Monitoring, IP68/IP66 3 Wire Device

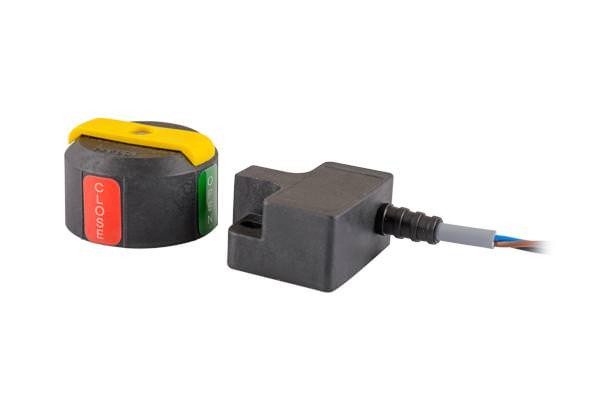

This Valve Position Switch complete with visual puck is designed to fit 1/4 turn namur actuators of all sizes. The housing is made from PBT Engineered resin and contains 2 x Normally Open (SPST) Contacts with a maximum switching capacity of 1.6A at 24V DC. These volt free contacts can be used for switching multiple voltages in AC or DC.
The maximum operating temperature is -20°C to +80°C.
Euroswitch construction allows them to be used in multiple applications across a wide variety of industries and are suitable for use in the design of safety functions up to SIL2 or SIL3.
Also available certified to multiple international standards.
- Body Shape
- Valve Indication
- Contact Arrangement
- SPCO / SPDT (Form C)
- Contact Material
- Rhodium (Tungsten Optional)
- Max Current
- PVC Cable
- ATEX Ex mb II T6, CCC-Ex China Compulsory Certification Ex db, CCC-Ex China Compulsory Certification Ex ia, IECEx Exe mb IIC T6, Safety Integrity Level (SIL)
- Safety Rating
- SL 3
- 50mm x 45mm x 25mm
- IP Rating
View the part number matrix here:
All of our products are also available as Ordinary Location / General Industrial.
