Proximity Switch - Magnetic

Proximity Switch - Magnetic

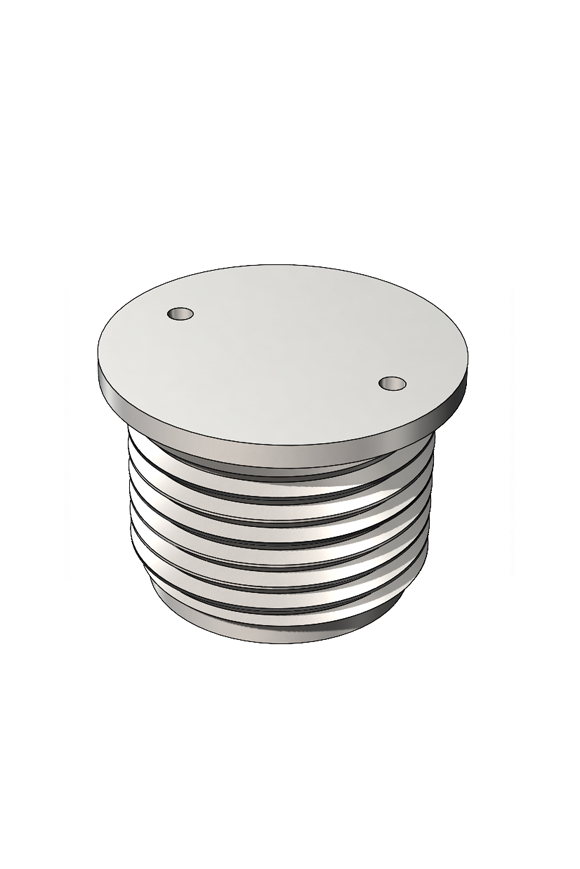

MA-X725

Magnetic Actuator

Certifications / Approvals

As per product features list.

Documents to view/download

Product Datasheet

Epoxy Sealed SmCo Magnet in Stainless Steel 316 Housing

Euroswitch MagnaProx proximity switches require an external magnetic actuator to operate. The FerroProx range of proximity switches also can utilize an magnetic actuator to increase their sensing range.

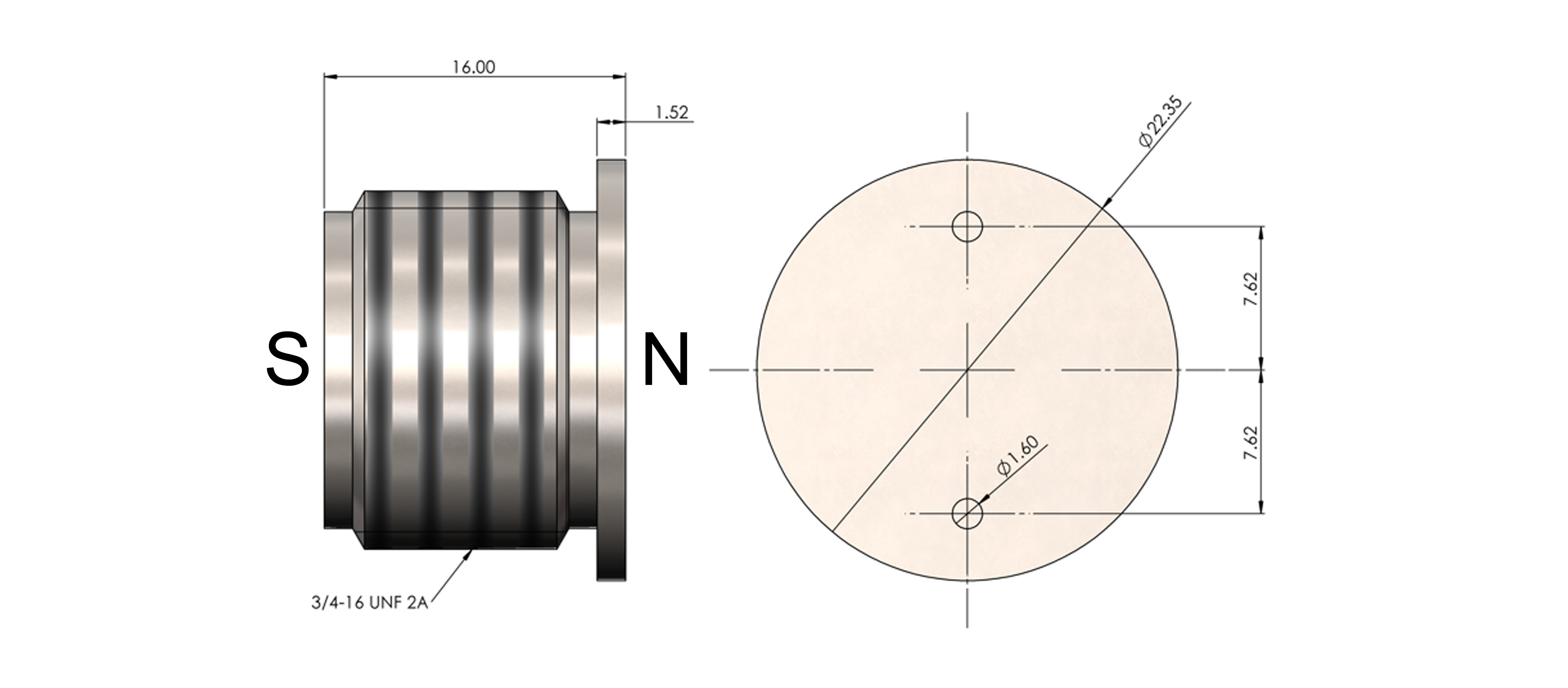

This bolt-style actuator is machined from 316L Stainless steel for maximum corrosion protection and is serviceable between -60°C and +150°C. The MA-7S has an increased magnetic strength when compared to MA-4S for a greater sensing range.

Body Material: 316L Stainless Steel
Mounting Thread: 3/4-16 UNF 2A
Operating Temperature: -60°C to +150°C / -76°F to +302°F

Certification

Gas Group

Temp Rating

Compliance

.

All of our products are also available as Ordinary Location / General Industrial.

operating principals diagram

Document	Language
Installation and Operating Instructions	English
Installation and Operating Instructions	Spanish
Installation and Operating Instructions	Italian
Installation and Operating Instructions	German
Installation and Operating Instructions	Russian
Installation and Operating Instructions	Portuguese
Installation and Operating Instructions	French
Installation and Operating Instructions	Polish
Installation and Operating Instructions	Chinese
