- ATEX Ex ia, IECEx Ex ia Groups IIC / IIIC T6 - SPCO/SPDT - Micro-Change Connector
Certifications / Approvals
|Magnet Part No.||N35 ⌀5x3|
|Sensing Range in mm (")||4 (0.16)||()||()|
Documents to view/download
Proximity Switch Certified for ATEX Ex ia, IECEx Ex ia IIC / IIIC T6 Rated for use in Gas & Dust Zones 0 and 20

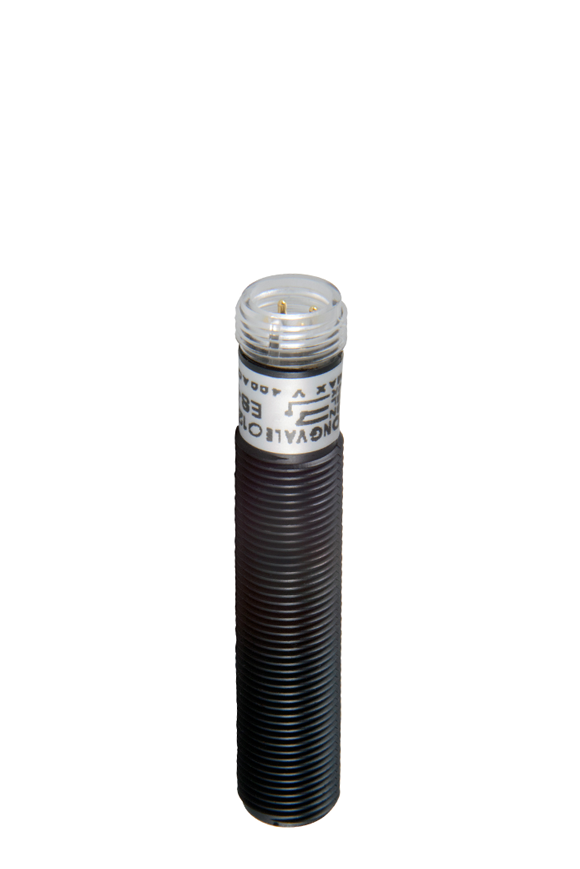

This Proximity Switch has an Engineered Resin Cylindrical housing with SPCO / SPDT (Form C) , volt free, hermetically sealed Rhodium (Tungsten optional) contacts. It has a maximum switching current of 2.5A .
It requires the use of a magnetic target to operate. This versatile switch provides highly reliable continuous monitoring across a wide operating temperature range.
Suitable for use in the design of safety functions up to SIL2 or SIL3.
Using the latest production methods and materials this product meets global certification requirements and its robust design makes it suitable for use in arduous and hazardous environments. Euroswitch products are also available with multi-approvals including combinations of the following global and regional certification standards;
ATEX / IECEx Ex d (Ex db); Ex ia; UL & CSA Cl I Div 1 & 2 and Cl2 Div 1 & 2; TR CU; INMETRO; KCs; FM; JIS; PESO; CCC; and NEPSI.
The RS series proximity switches meet the requirements of IEC 61508:2010 Routes 1H & 1S with Systematic Capability (SC3) as an element/subsystem, and are suitable for use in safety-related systems performing safety functions up to and including SIL 2 with HFT=0 (1oo1) and SIL 3 with HFT =1 (1oo2).
- Body Shape
- Body Material
- Engineered Resin
- Contact Arrangement
- SPCO / SPDT (Form C)
- Contact Material
- Rhodium (Tungsten optional)
- Mounting Thread
- 60.00mm / 2.36" Long (40.00mm / 1.57" for K40 body)
- Max Current
- Micro-Change Quick Disconnect 3 pin connector
- Conduit Entry
- Connector V2
- Certification & Approvals
- IECEx/ATEX Ex ia
- Hazardous Location
- Zones 0 and 20
- Gas Group
- Dust Group
- Temperature Class (T Rating)
- Operating Temperature
- -20°C to +80°C / -4°F to +176°F
- Sensing Range with Magnet
- Up to the maximum in the magnet table
- Environmental Protection
- IP 66, 67 & 68 / NEMA 4, 4X, 6 & 6P
- Safety Rating
- SIL 2 / SC3
All of our products are also available as Ordinary Location / General Industrial.
