Proximity Switch - Magnetic
M-VIP-TW-A1-V2(X697)
M-VIP Rotary Valve Position Indication Kit
Multi-Voltage, Volt Free Contacts | Solenoid Power | M12 QDC Connector
Valve Position Switch for Rotary Valve Position Monitoring,
IP68/IP66 Protection with 5-pin M12QDC output and solenoid power.

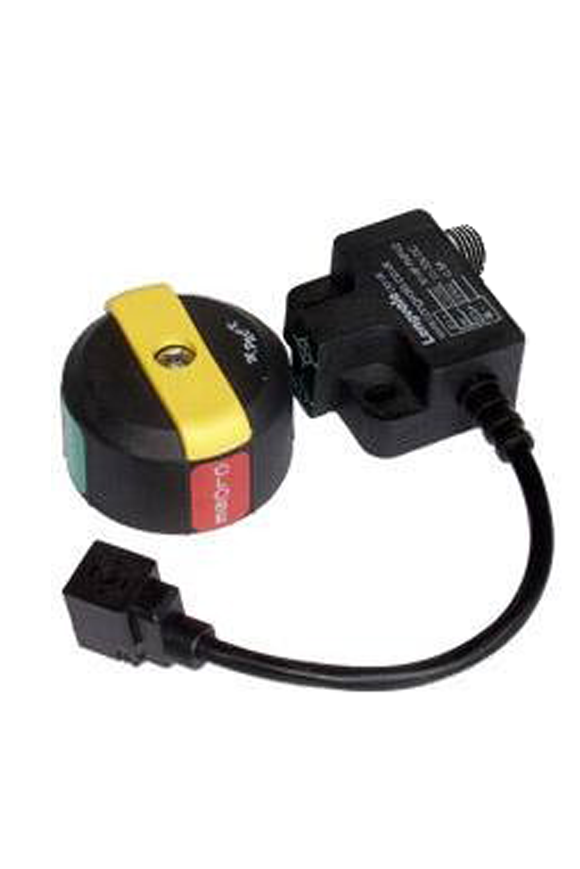

This Valve Position Switch complete with visual puck is designed to fit ¼ turn Namur actuators of all sizes. The housing is made from PBT Engineered resin and contains 2 x Normally Open (SPST) Contacts with a maximum switching capacity of 1.6A at 24V DC. These volt free contacts can be used for switching multiple voltages in AC or DC.
- Body Material
- Engineered Resin
- Contact Arrangement
- 2 x Normally Open (FormA)
- Contact Material
- Rhodium (Tungsten optional)
- Dimensions
- 50 x 45 x 25mm
- Max Current
- 1.6A
- Connection
- M12 Connector (A-Code) 5 pin (male pins)
- Termination
- Cabled
- Temperature Class (T Rating)
- n/a
- Operating Temperature
- -20°C to +80°C / -4°F to +176°F
- Sensing Range with Magnet
- Up to the maximum in the magnet table
- Sensing Face Pressure Rating
- 2000psi / 138 bar
- Environmental Protection
- IP 66, 67 & 68
- Safety Rating
- SIL 2 / SC3
- Actuation
- Magnetically Actuated
- Solenoid Connection
- 400mm long cable terminated in solenoid plug [DIN 43650 Form B type (11mm pin spacing)]
Certification
Compliance
Certificate No. (Click to download)
Safety Integrity Level (SIL)
IEC 61508:2010; SC3 ¦ SIL 2 with HFT=0 (1oo1) and SIL 3 with HFT =1 (1oo2)
All of our products are also available as Ordinary Location / General Industrial.
