Proximity Switch - Magnetic

Proximity Switch - Magnetic

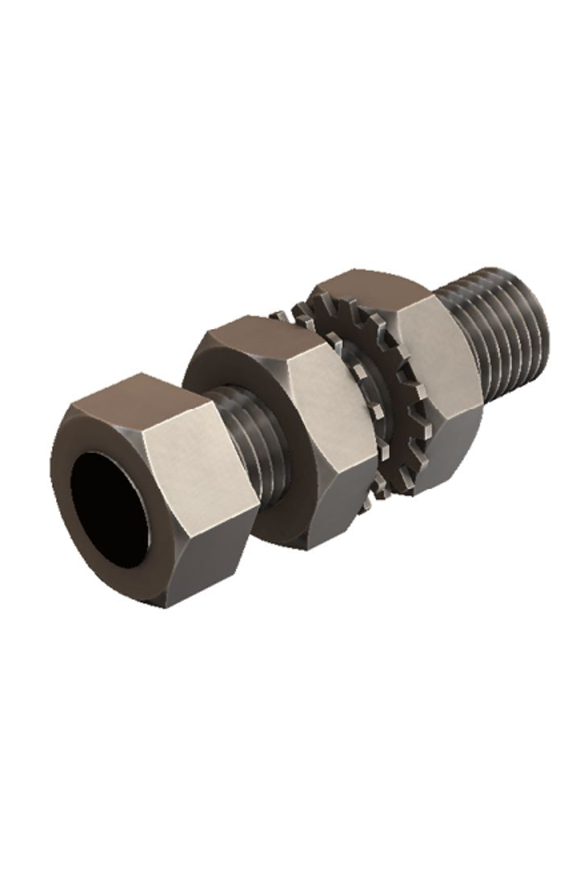

MA-8SN

Magnetic Actuator

Certifications / Approvals

As per product features list.

Documents to view/download

Product Datasheet

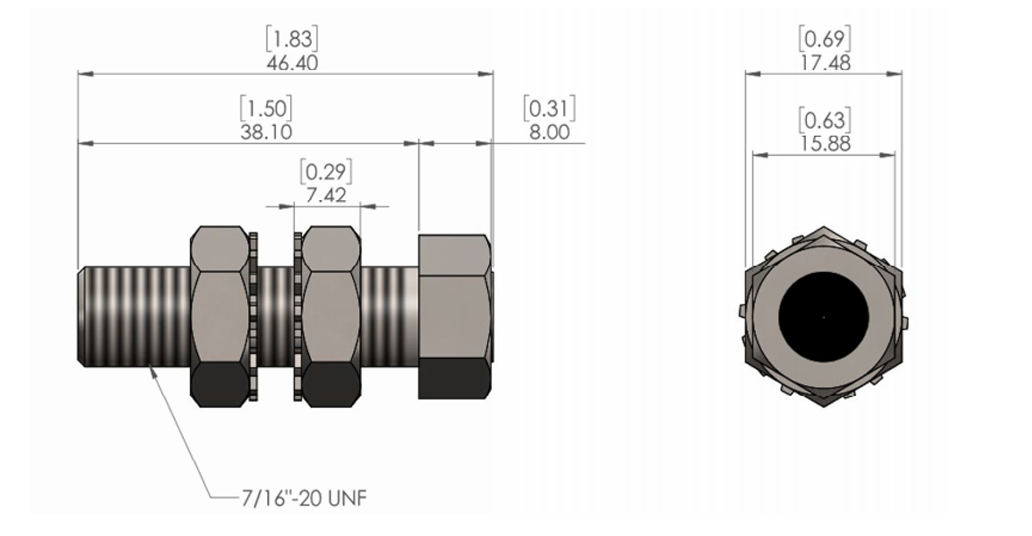

Bolt Style - Imperial 7/16-20" UNF

Euroswitch MagnaProx proximity switches series require an external magnetic actuator to operate, and can increase
sensing range with EuroSwitch FerroProx switches

Body Shape: Cylindrical
Body Material: 316L Stainless Steel
Mounting Thread: 7/16-20 UNF
Termination: n/a
Temperature Class (T Rating): n/a
Operating Temperature: -60°C to +150°C / -76°F to +302°F
Environmental Protection: IP 66, 67 & 68 (24hrs at 30m)/ NEMA 4X & 6P
Included Accessories: SS316 Mounting Hardware (2 x Locknuts/anti-vibration washers)

Certification

Gas Group

Temp Rating

Compliance

Certificate No. (Click to download)

Safety Integrity Level (SIL)

N/A

N/A

IEC 61508:2010; SC3 ¦ SIL 2 with HFT=0 (1oo1) and SIL 3 with HFT =1 (1oo2)

All of our products are also available as Ordinary Location / General Industrial.

operating principals diagram

Document	Language
Installation and Operating Instructions	English
Installation and Operating Instructions	Spanish
Installation and Operating Instructions	Italian
Installation and Operating Instructions	German
Installation and Operating Instructions	Russian
Installation and Operating Instructions	Portuguese
Installation and Operating Instructions	French
Installation and Operating Instructions	Polish
Installation and Operating Instructions	Chinese

Alternative Versions Available

Feature	Variation	Related Product Page
